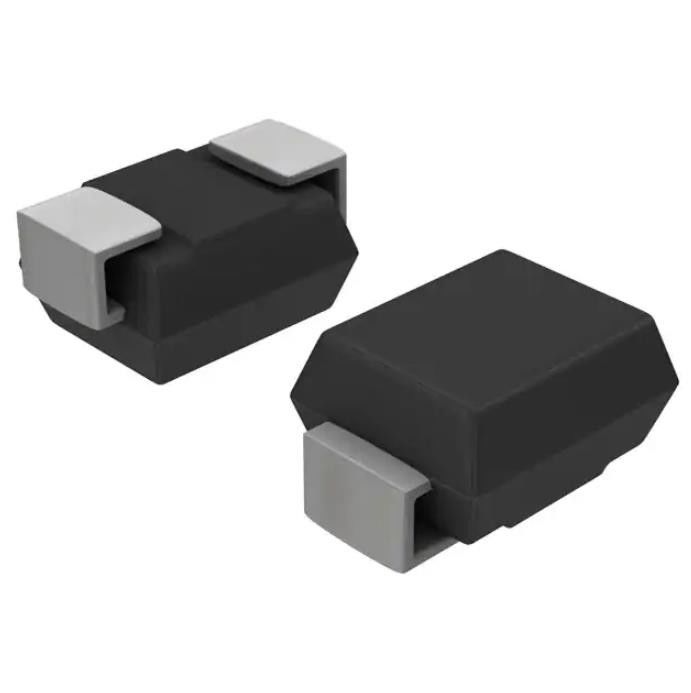

P6SMB20AT3G Tantalum Chip Capacitor Tvs Diode 17.1vwm 27.7vc Smb
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | P6SMB20AT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Obsolete | Type: | Zener |
|---|---|---|---|
| Unidirectional Channels: | 1 | Voltage - Reverse Standoff (Typ): | 17.1V |
| Voltage - Breakdown (Min): | 19V | Voltage - Clamping (Max) @ Ipp: | 27.7V |
| Current - Peak Pulse (10/1000µs): | 22A | Power - Peak Pulse: | 600W |
Product Description
P6SMB20AT3G Tantalum Chip Capacitor Tvs Diode 17.1vwm 27.7vc Smb
27.7V Clamp 22A Ipp Tvs Diode Surface Mount SMB
Specifications of P6SMB20AT3G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | P6SMB |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 17.1V |
| Voltage - Breakdown (Min) | 19V |
| Voltage - Clamping (Max) @ Ipp | 27.7V |
| Current - Peak Pulse (10/1000µs) | 22A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 910pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | P6SMB |
FEATURES of P6SMB20AT3G
• Working Peak Reverse Voltage Range - 5.8 to 171V
• Standard Zener Breakdown Voltage Range - 6.8 to 200 V
• Peak Power - 600 W @ 1 ms
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Peak Power - 600 W @ 1 ms
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 UA Above 10 V
• UL 497B for Isolated Loop Circuit Protection
• Response Time is Typically < 1 ns
• Sz Prefix for Automotive and Other Applications Requiring Unique
• Sz Prefix for Automotive and Other Applications Requiring Unique
• Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
• These Devices are Pb-Free and are RoHS Compliant
• These Devices are Pb-Free and are RoHS Compliant
Applications of P6SMB20AT3G
The SMB series is designed to protect voltage sensitivecomponents from high voltage, high energy transients. They haveexcellent clamping capability, high surge capability, low zenerimpedance and fast response time. The SMB series is supplied inthe Littelfuseexclusive, cost-effective, highly reliablepackage and is ideally suited for use in communicationautomotive,numerical controls.processsystems.controls.medical equipment, business machines, power supplies and manyother industrial/consumer applications.
Environmental & Export Classifications of P6SMB20AT3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
| California Prop 65 | Warning Information |
Want to Know more details about this product
