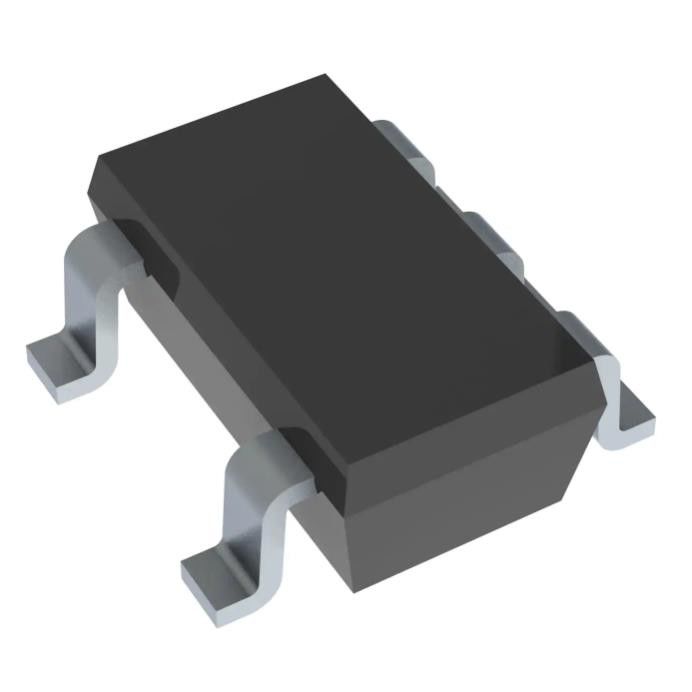

OPA820IDBVTG4 Tantalum Chip Capacitor Ic Opamp Vfb 1 Circuit Sot23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA820IDBVTG4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 240V/µs | Gain Bandwidth Product: | 280 MHz |
|---|---|---|---|
| -3db Bandwidth: | 800 MHz | Current - Input Bias: | 9 µA |
| Voltage - Input Offset: | 200 µV | Current - Supply: | 5.6mA |
| Current - Output / Channel: | 110 MA | Voltage - Supply Span (Min): | 5 V |
Product Description
OPA820IDBVTG4 Tantalum Chip Capacitor Ic Opamp Vfb 1 Circuit Sot23-5
Voltage Feedback Amplifier 1 Circuit SOT-23-5
Specifications of OPA820IDBVTG4
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at Digi-Key |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 240V/µs |
| Gain Bandwidth Product | 280 MHz |
| -3db Bandwidth | 800 MHz |
| Current - Input Bias | 9 µA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 5.6mA |
| Current - Output / Channel | 110 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | OPA820 |
FEATURES of OPA820IDBVTG4
• High Bandwidth (240 MHz, G 2)
• High-Output Current ( 110 mA)
• Low-Input Noise (2.5 nV/√Hz)
• Low-Supply Current (5.6 mA)
• Flexible Supply Voltage:
– Dual 2.5 V to 6 V
– Single 5 V to 12 V
• Excellent DC Accuracy:
– Maximum 25°C Input Offset Voltage 750 µV
– Maximum 25°C Input Offset Current 400 nA
Applications of OPA820IDBVTG4
• Low-Cost Video Line Drivers
• ADC Preamplifiers
• Active Filters
• Low-Noise Integrators
• Portable Test Equipment
• Optical Channel Amplifiers
• Low-Power, Baseband Amplifiers
• CCD Imaging Channel Amplifiers
• OPA650 and OPA620 Upgrade
Environmental & Export Classifications of OPA820IDBVTG4
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
Want to Know more details about this product
