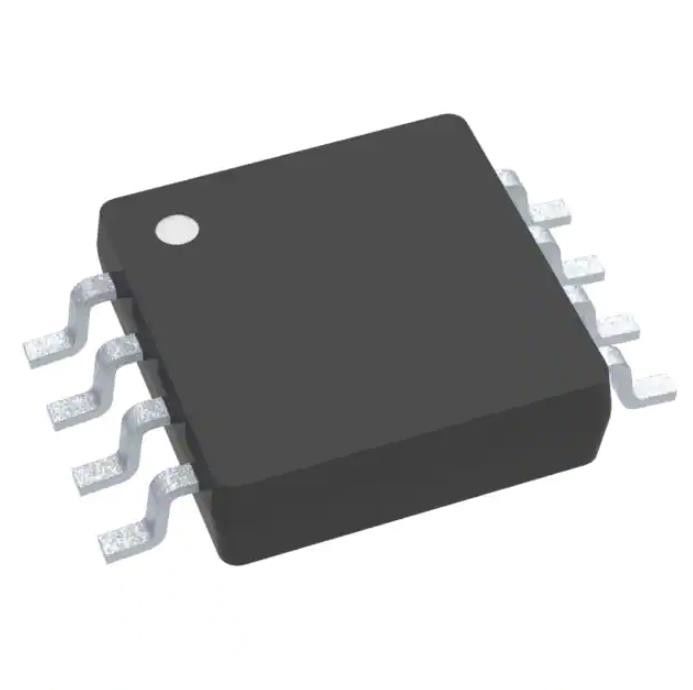

OPA2836QDGKRQ1 Tantalum Chip Capacitor Ic Opamp Vfb 2 Circuit 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2836QDGKRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Differential, Rail-to-Rail | Slew Rate: | 560V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 118 MHz | -3db Bandwidth: | 205 MHz |
| Current - Input Bias: | 650 NA | Voltage - Input Offset: | 65 µV |
| Current - Supply: | 950µA (x2 Channels) | Current - Output / Channel: | 50 MA |
Product Description
OPA2836QDGKRQ1 Tantalum Chip Capacitor Ic Opamp Vfb 2 Circuit 8vssop
Voltage Feedback Amplifier 2 Circuit Differential, Rail-to-Rail 8-VSSOP
Specifications of OPA2836QDGKRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 560V/µs |
| Gain Bandwidth Product | 118 MHz |
| -3db Bandwidth | 205 MHz |
| Current - Input Bias | 650 nA |
| Voltage - Input Offset | 65 µV |
| Current - Supply | 950µA (x2 Channels) |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | OPA2836 |
FEATURES of OPA2836QDGKRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM Classification Level 2
– Device CDM Classification Level C6
• Low Power:
– Supply Voltage: 2.5 V to 5.5 V
– Quiescent Current: 1 mA (Typ)
– Power-Down Mode: 0.5 µA Typ)
• Bandwidth: 205 MHz
• Slew Rate: 560 V/µs
• Rise Time: 3 ns (2 VSTEP)
• Settling Time (0.1%): 22 ns (2 VSTEP)
• Overdrive Recovery Time: 60 ns
• SNR: 0.00013% (–117.6 dBc) at 1 kHz (1 VRMS)
• THD: 0.00003% (–130 dBc) at 1 kHz (1 VRMS)
• HD2 , HD3 : –85 dBc, –105 dBc at 1 MHz (2 VPP)
• Input Voltage Noise: 4.6 nV/√Hz (f 100 kHz)
• Input Offset Voltage: 65 µV ( 400-µV Max)
• CMRR: 116 dB
• Output Current Drive: 50 mA
• RRO: Rail-to-Rail Output
• Input Voltage Range: –0.2 V to +3.9 V (5-V Supply)
Applications of OPA2836QDGKRQ1
• Low-Power Signal Conditioning
• Audio ADC Input Buffers
• Low-Power SAR and ΔΣ ADC Drivers
• Portable Systems
• Low-Power Systems
• High-Density Systems
Environmental & Export Classifications of OPA2836QDGKRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
