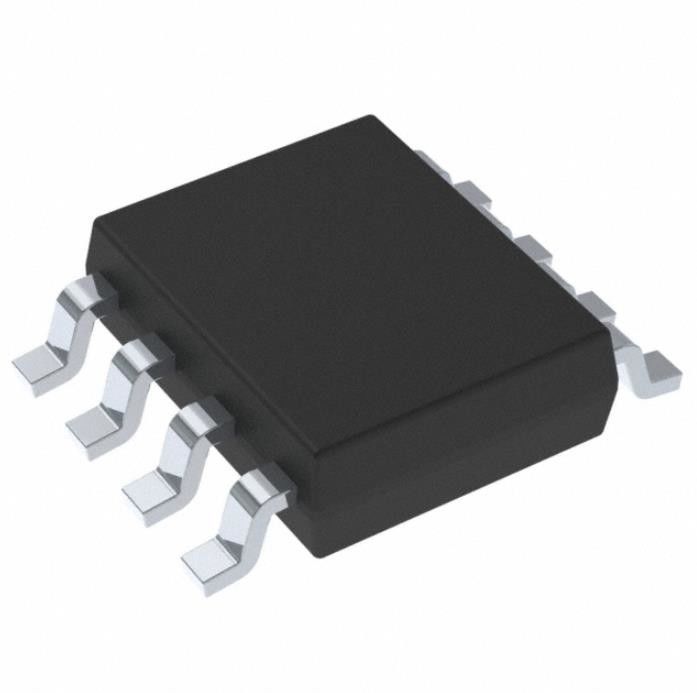

OPA2677IDDA Tantalum Chip Capacitor Ic Opamp Cfa 2 Circ 8sopwrpad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2677IDDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 2000V/µs | Gain Bandwidth Product: | 2 GHz |
|---|---|---|---|
| -3db Bandwidth: | 250 MHz | Current - Input Bias: | 10 µA |
| Voltage - Input Offset: | 800 µV | Current - Supply: | 18mA (x2 Channels) |
| Current - Output / Channel: | 500 MA | Voltage - Supply Span (Min): | 5 V |
Product Description
OPA2677IDDA Tantalum Chip Capacitor Ic Opamp Cfa 2 Circ 8sopwrpad
Current Feedback Amplifier 2 Circuit 8-SO PowerPad
Specifications of OPA2677IDDA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Current Feedback |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 2000V/µs |
| Gain Bandwidth Product | 2 GHz |
| -3db Bandwidth | 250 MHz |
| Current - Input Bias | 10 µA |
| Voltage - Input Offset | 800 µV |
| Current - Supply | 18mA (x2 Channels) |
| Current - Output / Channel | 500 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | OPA2677 |
FEATURES of OPA2677IDDA
• WIDEBAND +12V OPERATION: 200MHz (G = +4)
• UNITY-GAIN STABLE: 220MHz (G = +1)
• HIGH OUTPUT CURRENT: 500mA
• OUTPUT VOLTAGE SWING: ±5V
• HIGH SLEW RATE: 1800V/μs
• LOW SUPPLY CURRENT: 18mA
• FLEXIBLE SUPPLY RANGE:
+5 to +12V Single Supply
±2.5 to ±6V Dual Supplies
Applications of OPA2677IDDA
• xDSL LINE DRIVER
• CABLE MODEM DRIVER
• MATCHED I/Q CHANNEL AMPLIFIER
• BROADBAND VIDEO LINE DRIVER
• ARB LINE DRIVER
• POWER LINE MODEM
• HIGH CAP LOAD DRIVER
Environmental & Export Classifications of OPA2677IDDA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
