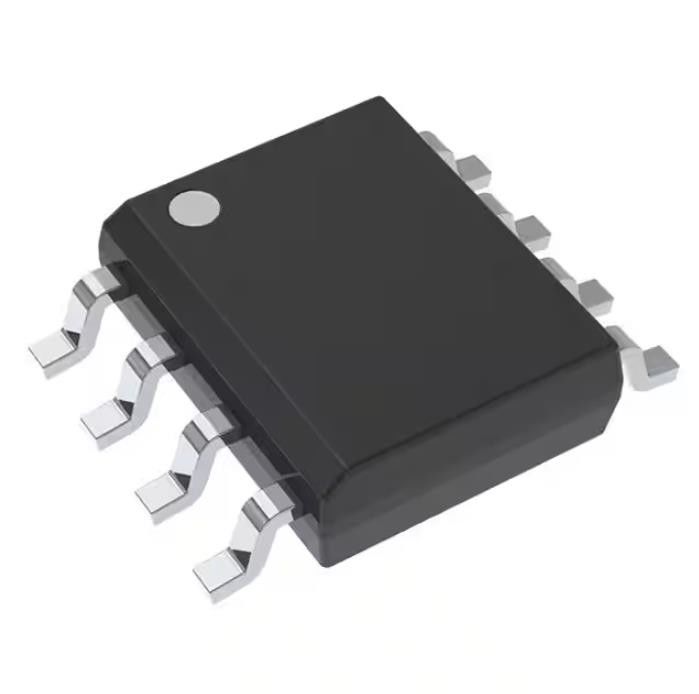

OPA2277UA/2K5 Tantalum Chip Capacitor Ic Opamp Gp 2 Circuit 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2277UA/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 0.8V/µs | Gain Bandwidth Product: | 1 MHz |
|---|---|---|---|
| Current - Input Bias: | 4 NA | Voltage - Input Offset: | 20 µV |
| Current - Supply: | 790µA (x2 Channels) | Current - Output / Channel: | 35 MA |
| Voltage - Supply Span (Min): | 4 V | Voltage - Supply Span (Max): | 36 V |
Product Description
OPA2277UA/2K5 Tantalum Chip Capacitor Ic Opamp Gp 2 Circuit 8soic
General Purpose Amplifier 2 Circuit 8-SOIC
Specifications of OPA2277UA/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.8V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 4 nA |
| Voltage - Input Offset | 20 µV |
| Current - Supply | 790µA (x2 Channels) |
| Current - Output / Channel | 35 mA |
| Voltage - Suppl3y Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OPA2277 |
FEATURES of OPA2277UA/2K5
• Low Noise: 3nV/√Hz
• Low Noise: 3nV/√Hz
• Low Noise: 3nV/√Hz
• Ultralow Offset Voltage: 10 μV
• Ultralow Drift: ±0.1 μV/°C
• High Open-Loop Gain: 134 dB
• High Common-Mode Rejection: 140 dB
• High Power Supply Rejection: 130 dB
• Low Bias Current: 1-nA maximum
• Wide Supply Range: ±2 V to ±18 V
• Low Quiescent Current: 800 μA/amplifier
• Single, Dual, and Quad Versions
• Replaces OP-07, OP-77
Applications of OPA2277UA/2K5
• Transducer Amplifiers
• Bridge Amplifiers
• Temperature Measurements
• Strain Gage Amplifiers
• Precision Integrators
• Battery-Powered Instruments
• Test Equipment
Environmental & Export Classifications of OPA2277UA/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
