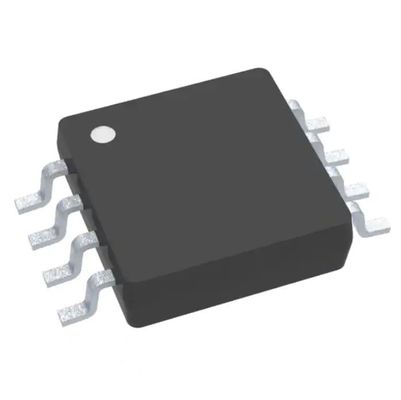

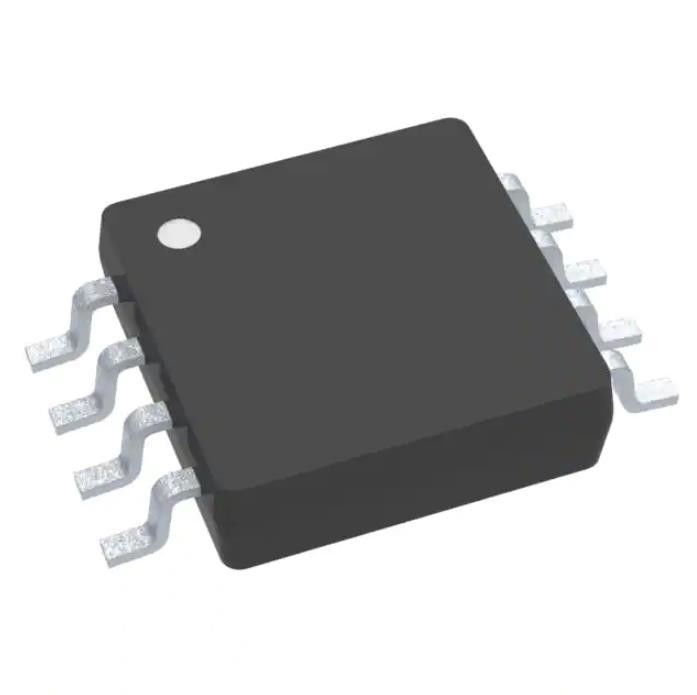

OPA2209AIDGKT Tantalum Chip Capacitor Ic Opamp Gp 2 Circuit 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2209AIDGKT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | General Purpose |
|---|---|---|---|
| Number Of Circuits: | 2 | Output Type: | Rail-to-Rail |
| Slew Rate: | 6.4V/µs | Gain Bandwidth Product: | 18 MHz |
| Current - Input Bias: | 1 NA | Voltage - Input Offset: | 35 µV |
Product Description
OPA2209AIDGKT Tantalum Chip Capacitor Ic Opamp Gp 2 Circuit 8vssop
General Purpose Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
Specifications of OPA2209AIDGKT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 6.4V/µs |
| Gain Bandwidth Product | 18 MHz |
| Current - Input Bias | 1 nA |
| Voltage - Input Offset | 35 µV |
| Current - Supply | 2.2mA (x2 Channels) |
| Current - Output / Channel | 65 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | OPA2209 |
FEATURES of OPA2209AIDGKT
• Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
• 0.1-Hz to 10-Hz Noise: 130 nVPP
• Low Quiescent Current: 2.5 mA/Ch (Maximum)
• Low Offset Voltage: 150 µV (Maximum)
• Gain Bandwidth Product: 18 MHz
• Slew Rate: 6.4 V/µs
• Wide Supply Range: 2.25 V to 18 V, 4.5 V to 36 V
• Rail-to-Rail Output
• Short-Circuit Current: 65 mA
• Available in 5-Pin SOT-23, 8-Pin MSOP, 8-Pin SOIC, and 14-Pin TSSOP Packages
Applications of OPA2209AIDGKT
• PLL Loop Filters
• Low-Noise, Low-Power Signal Processing
• Low-Noise Instrumentation Amplifiers
• High-Performance ADC Drivers
• High-Performance DAC Output Amplifiers
• Active Filters
• Ultrasound Amplifiers
• Professional Audio Preamplifiers
• Low-Noise Frequency Synthesizers
• Infrared Detector Amplifiers
• Hydrophone Amplifiers
Environmental & Export Classifications of OPA2209AIDGKT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
