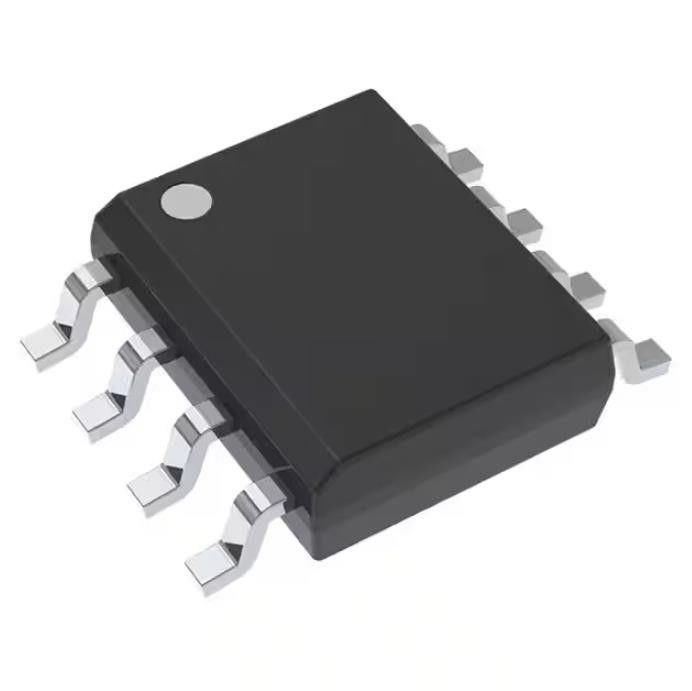

OPA2132U/2K5 Tantalum Chip Capacitor Ic Opamp Jfet 2 Circuit 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2132U/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 20V/µs | Gain Bandwidth Product: | 8 MHz |
|---|---|---|---|
| Current - Input Bias: | 5 PA | Voltage - Input Offset: | 250 µV |
| Current - Supply: | 4mA (x2 Channels) | Current - Output / Channel: | 40 MA |
| Voltage - Supply Span (Min): | 5 V | Voltage - Supply Span (Max): | 36 V |
Product Description
OPA2132U/2K5 Tantalum Chip Capacitor Ic Opamp Jfet 2 Circuit 8soic
J-FET Amplifier 2 Circuit 8-SOIC
Specifications of OPA2132U/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | OPAx132 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 20V/µs |
| Gain Bandwidth Product | 8 MHz |
| Current - Input Bias | 5 pA |
| Voltage - Input Offset | 250 µV |
| Current - Supply | 4mA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OPA2132 |
FEATURES of OPA2132U/2K5
• FET input: le = 50 pA Maximum
• Wide Bandwidth: 8 MHZHigh Slew Rate: 20 V/us
• Low Noise: 8nVVHz (1 kHz)
• Low Distortion:0.00008%)
• High Open-loop Gain: 130 dB (600-0 load)
• High Open-loop Gain: 130 dB (600-0 load)
• Wide Supply Range: +2.5 to +18V
• Low Offset Voltage: 500 uV Maximum
• Single, Dual, and Quad Versions
Applications of OPA2132U/2K5
• SAR ADC Driver
• Voltage Reference Buffer
• Voltage Reference Buffer
• Trans-impedance Amplifier
• Photodiode Amplifier
• Active Filters
• Integrators
• Integrators
Environmental & Export Classifications of OPA2132U/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
