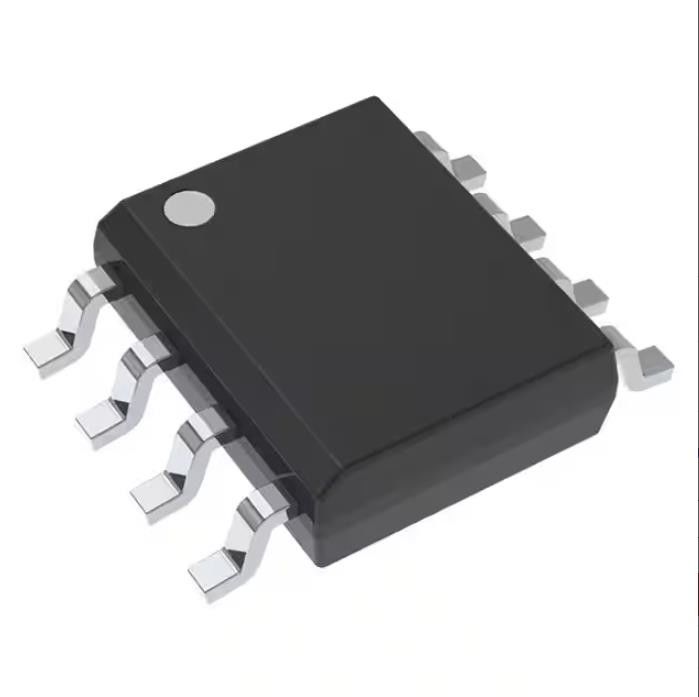

OPA2131UA/2K5 Tantalum Chip Capacitor Ic Opamp Jfet 2 Circuit 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA2131UA/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 10V/µs | Gain Bandwidth Product: | 4 MHz |
|---|---|---|---|
| Current - Input Bias: | 5 PA | Voltage - Input Offset: | 200 µV |
| Current - Supply: | 1.5mA (x2 Channels) | Current - Output / Channel: | 25 MA |
| Voltage - Supply Span (Min): | 9 V | Voltage - Supply Span (Max): | 36 V |
Product Description
OPA2131UA/2K5 Tantalum Chip Capacitor Ic Opamp Jfet 2 Circuit 8soic
J-FET Amplifier 2 Circuit 8-SOIC
Specifications of OPA2131UA/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 5 pA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 1.5mA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OPA2131 |
FEATURES of OPA2131UA/2K5
● FET INPUT: IB = 50pA max
● LOW OFFSET VOLTAGE: 750µV max
● WIDE SUPPLY RANGE: ±4.5V to ±18V
● SLEW RATE: 10V/µs
● WIDE BANDWIDTH: 4MHz
● EXCELLENT CAPACITIVE LOAD DRIVE
● SINGLE, DUAL, QUAD VERSIONS
Applications of OPA2131UA/2K5
The OPA131 series of FET-input op amps provides high performance at low cost. Single, dual, and quad versions in
industry-standard pinouts allow cost-effective design options. The OPA131 series offers excellent general-purpose performance, including low offset voltage, drift, and good dynamic characteristics. Single, dual, and quad versions are available in DIP and SO packages. Performance grades include commercial and industrial temperature ranges.
Environmental & Export Classifications of OPA2131UA/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
