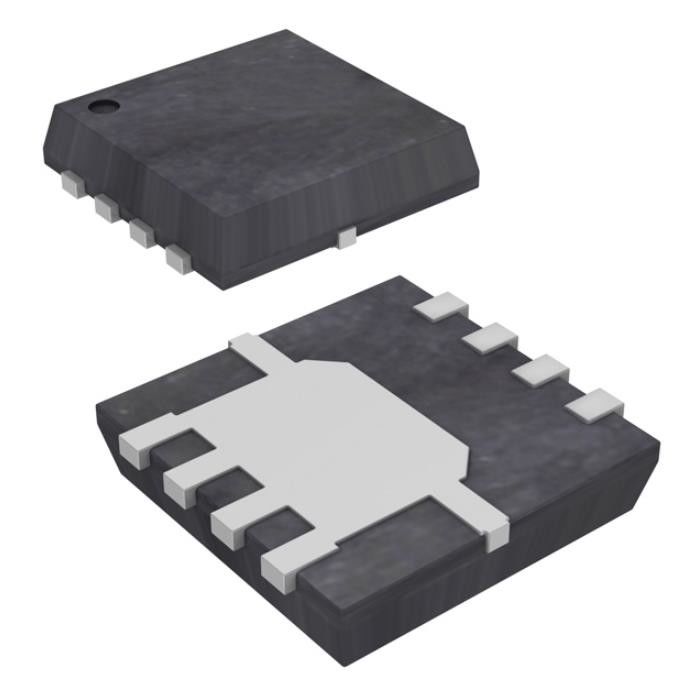

NTTFS4C10NTWG Tantalum Chip Capacitor Mosfet N-Ch 30v 8.2a/44a 8wdfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NTTFS4C10NTWG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | FET Type: | N-Channel |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 30 V |
| Current - Continuous Drain (Id) @ 25°C: | 8.2A (Ta), 44A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 7.4mOhm @ 30A, 10V | Vgs(th) (Max) @ Id: | 2.2V @ 250µA |
Product Description
NTTFS4C10NTWG Tantalum Chip Capacitor Mosfet N-Ch 30v 8.2a/44a 8wdfn
N-Channel 30 V 8.2A (Ta), 44A (Tc) 790mW (Ta), 23.6W (Tc) Surface Mount 8-WDFN (3.3x3.3)
Specifications of NTTFS4C10NTWG
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8.2A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18.6 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 993 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 790mW (Ta), 23.6W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
| Base Product Number | NTTFS4 |
FEATURES of NTTFS4C10NTWG
• Low RDS(on) to Minimize Conduction Losses
• Low Capacitance to Minimize Driver Losses
• Optimized Gate Charge to Minimize Switching Losses
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NTTFS4C10NTWG
• DC−DC Converters
• Power Load Switch
• Notebook Battery Management
Environmental & Export Classifications of NTTFS4C10NTWG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
