NS9360B-0-C177 Tantalum Chip Capacitor Ns9360b-0-C177 602-1425-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NS9360B-0-C177 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Digi | Series: | NET+ARM® |
|---|---|---|---|
| Package: | Tray | Product Status: | Not For New Designs |
| Digi-Key Programmable: | Not Verified | Applications: | Network Processor |
| Core Processor: | ARM9® | Program Memory Type: | External Program Memory |
Product Description
NS9360B-0-C177 Tantalum Chip Capacitor Ns9360b-0-C177 602-1425-Nd

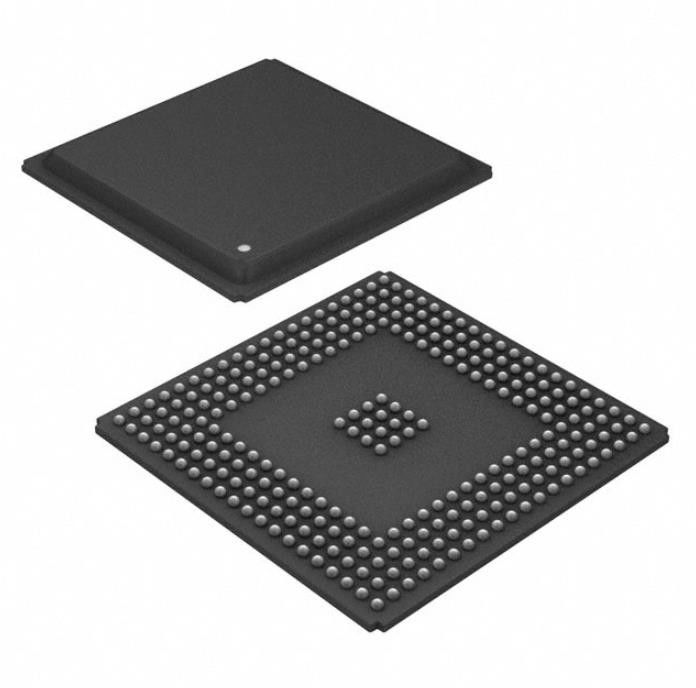

IC ARM9 MICROPROCESSOR 272BGA
Specifications of NS9360B-0-C177
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Application Specific Microcontrollers | |
| Mfr | Digi |
| Series | NET+ARM® |
| Package | Tray |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Applications | Network Processor |
| Core Processor | ARM9® |
| Program Memory Type | External Program Memory |
| Controller Series | - |
| RAM Size | External |
| Interface | EBI/EMI, Ethernet, DMA, I²C, IEEE 1284, LCD, SPI, UART, USB |
| Number of I/O | 73 |
| Voltage - Supply | 1.4V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 272-BBGA |
| Supplier Device Package | 272-BGA (27x27) |
| Base Product Number | NS9360 |
FEATURES of NS9360B-0-C177
• 32-bit ARM926EJ-S RISC processor
• 103 to 177 MHz
• 5-stage pipeline with interlocking
• Harvard architecture
• 8 kB instruction cache and 4 kB data cache
• 32-bit ARM and 16-bit Thumb instruction sets. Can be mixed for performance/code density tradeoffs
• MMU to support virtual memory-based OSs such as Linux, WinCE/Pocket PC, VxWorks, others
• DSP instruction extensions, improved divide, single cycle MAC
• ARM Jazelle, 1200CM (coffee marks) Java accelerator
• EmbeddedICE-RT debug unit
• JTAG boundary scan, BSDL support
Applications of NS9360B-0-C177
• Ethernet MII/RMII interface to an external PHY
• System Memory interface
– Glueless connection to SDRAM
– Glueless connection to buffered PC100 DIMM
– Glueless connection to SRAM
– Glueless connection to Flash memory or ROM
• USB Host or Device interface using internal USB PHY
• I 2C interface
• 73 GPIO pins muxed with:
– Four 8-pin-each serial ports, each programmable to UART or SPI
– 1284 port
– LCD controller interface
Environmental & Export Classifications of NS9360B-0-C177
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
| California Prop 65 | Warning Information |
