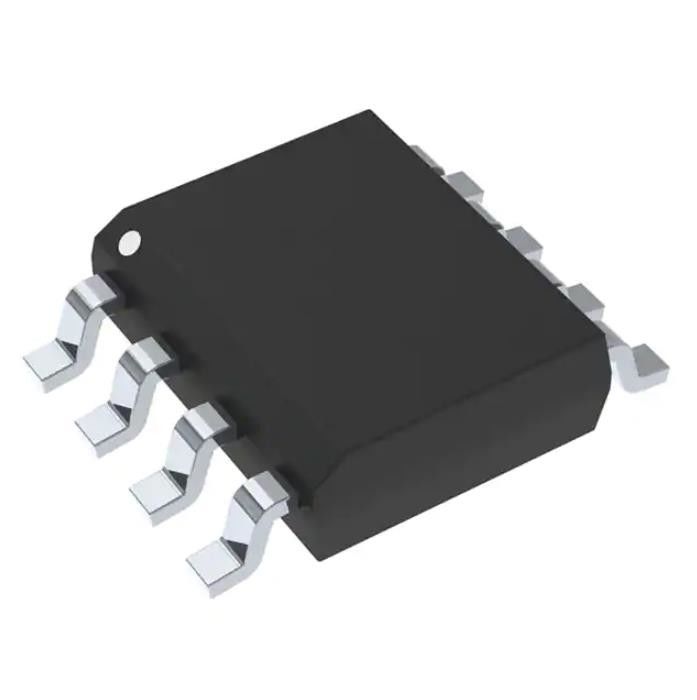

NCV887302D1R2G Tvs Diode Smd Automotive Switcher 88-NCV887302D1R2GTR-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCV887302D1R2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Clock Sync: | Yes | Synchronous Rectifier: | No |
|---|---|---|---|
| Control Features: | Current Sense, Enable | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOICDT | Base Product Number: | NCV887302 |
Product Description
NCV887302D1R2G Tvs Diode Smd Automotive Switcher 88-NCV887302D1R2GTR-ND
Boost Regulator Positive Output Step-Up DC-DC Controller IC 8-SOIC
Specifications of NCV887302D1R2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.2V ~ 40V |
| Frequency - Switching | 400kHz |
| Duty Cycle (Max) | 92.50% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Sense, Enable |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | NCV887302 |
FEATURES of NCV887302D1R2G
• Peak Current Mode Control with Internal Slope Compensation
• 0.2 V 3% Reference Voltage for Constant Current Loads
• Fixed Frequency Operation
• Wide Input Voltage Range of 3.2 V to 40 V, 45 V Load Dump
• Input Undervoltage Lockout (UVLO)
• Internal Soft−Start
• Low Quiescent Current in Sleep Mode
Applications of NCV887302D1R2G
• Cycle−by−Cycle Current Limit Protection
• Thermal Shutdown (TSD)
• This is a Pb−Free Device
Environmental & Export Classifications of NCV887302D1R2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
