NCV5183DR2G Tvs Diode Smd Ic Gate Drvr Half-Bridge 8soic NCV5183DR2GOSCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCV5183DR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Input Type: | Non-Inverting | High Side Voltage - Max (Bootstrap): | 600 V |
|---|---|---|---|
| Rise / Fall Time (Typ): | 12ns, 12ns | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC | Base Product Number: | NCV5183 |
Product Description

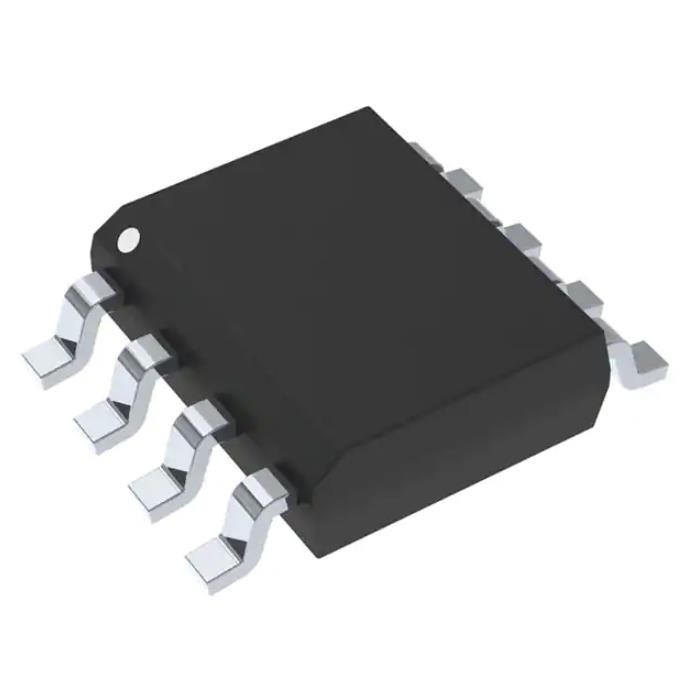

NCV5183DR2G Tvs Diode Smd Ic Gate Drvr Half-Bridge 8soic NCV5183DR2GOSCT-ND
Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
Specifications of NCV5183DR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 18V |
| Logic Voltage - VIL, VIH | 1.2V, 2.5V |
| Current - Peak Output (Source, Sink) | 4.3A, 4.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | NCV5183 |
FEATURES of NCV5183DR2G
• Automotive Qualified to AEC Q100
• Voltage Range: up to 600 V • dV/dt Immunity
• Gate Drive Supply Range from 9 V to 18 V
• Output Source / Sink Current Capability 4.3 A / 4.3 A
• 3.3 V and 5 V Input Logic Compatible
• Extended Allowable Negative Bridge Pin Voltage Swing to –10 V
• Matched Propagation Delays between Both Channels
• Propagation Delay 120 ns typically
• Under VCC LockOut (UVLO) for Both Channels
• Pin to Pin Compatible with Industry Standards
• These are Pb−free Devices
Applications of NCV5183DR2G
• Power Supplies for Telecom and Datacom
• Half−Bridge and Full−Bridge Converters
• Push−Pull Converters
• High Voltage Synchronous−Buck Converters
Environmental & Export Classifications of NCV5183DR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
