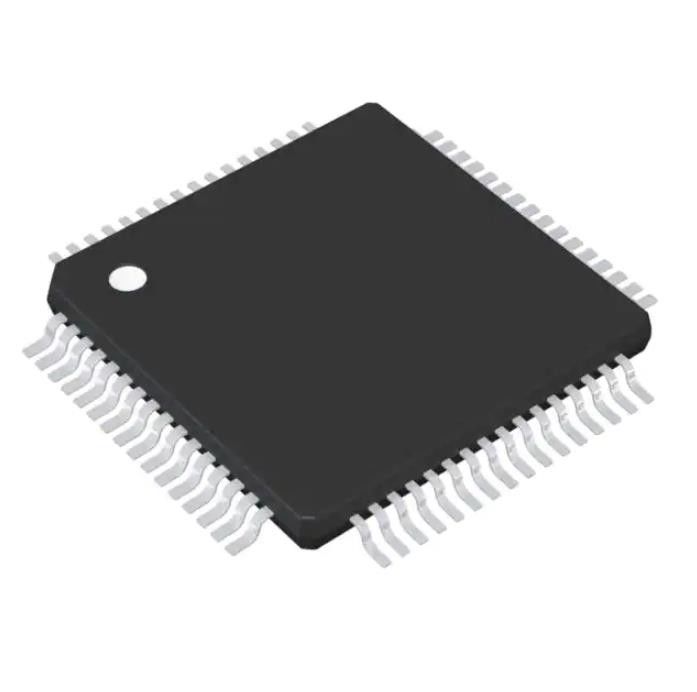

MSP430FR5989IPMR Tvs Diode Smd Ic Mcu 16bit 128kb Fram 64lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430FR5989IPMR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V | Data Converters: | A/D 12x12b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 64-LQFP |
| Supplier Device Package: | 64-LQFP (10x10)WM, WDT | Base Product Number: | MSP430FR5989 |
Product Description
MSP430FR5989IPMR Tvs Diode Smd Ic Mcu 16bit 128kb Fram 64lqfp
MSP430 CPUXV2 MSP430™ FRAM Microcontroller IC 16-Bit 16MHz 128KB (128K x 8) FRAM 64-LQFP (10x10)
Specifications of MSP430FR5989IPMR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430™ FRAM |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | MSP430FR5989 |
FEATURES of MSP430FR5989IPMR
• Shutdown (LPM4.5): 0.02 µA (Typical)
• Ultra-Low-Power Ferroelectric RAM (FRAM)
• Up to 128KB of Nonvolatile Memory
• Ultra-Low-Power Writes
• Fast Write at 125 ns per Word (64KB in 4 ms)
• Unified Memory Program + Data + Storage in One Single Space
• 1015 Write Cycle Endurance
• Radiation Resistant and Nonmagnetic
• Intelligent Digital Peripherals
• 32-Bit Hardware Multiplier (MPY)
• Three-Channel Internal Direct Memory Access (DMA)
Applications of MSP430FR5989IPMR
• RTC With Calendar and Alarm Functions
• 16-Channel Analog Comparator
• IrDA Encode and Decode
• UART With Automatic Baud-Rate Detection
Environmental & Export Classifications of MSP430FR5989IPMR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
