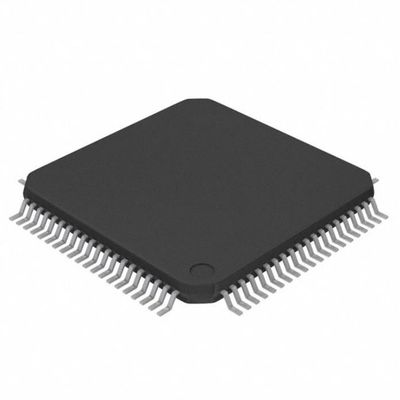

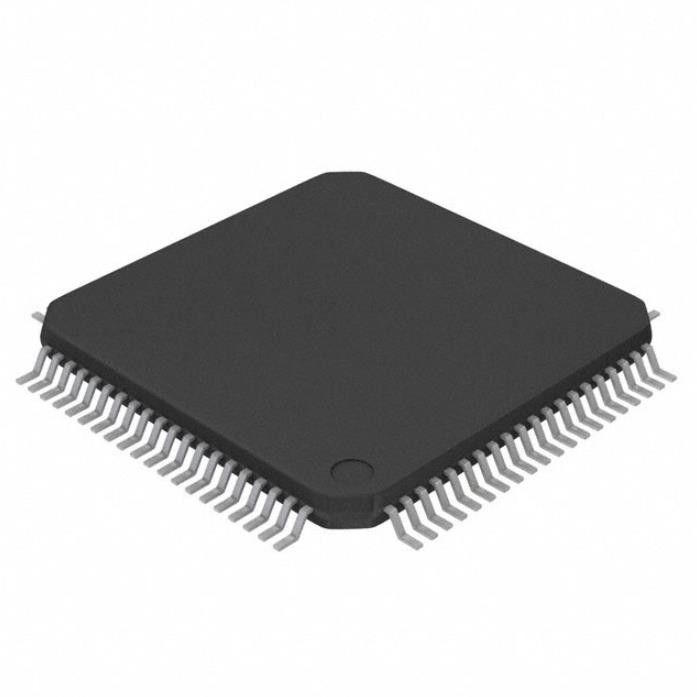

MSP430F5437AIPNR Tvs Diode Smd Ic Mcu 16bit 256kb Flash 80lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430F5437AIPNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V | Data Converters: | A/D 16x12b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 80-LQFP |
| Supplier Device Package: | 80-LQFP (12x12)DT | Base Product Number: | MSP430F5437 |
Product Description
MSP430F5437AIPNR Tvs Diode Smd Ic Mcu 16bit 256kb Flash 80lqfp
MSP430 CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 256KB (256K x 8) FLASH 80-LQFP (12x12)
Specifications of MSP430F5437AIPNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F5xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 67 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-LQFP (12x12) |
| Base Product Number | MSP430F5437 |
FEATURES of MSP430F5437AIPNR
• Hardware multiplier supports 32-bit operations
• Serial onboard programming, no external programming voltage needed
• 3-channel internal DMA • Basic timer with RTC feature
• Device Comparison summarizes the available family members
• Wake up from standby mode in 3.5 µs (typical)
• 16-bit timer TA1, Timer_A with three capture/ compare registers
• Up to four universal serial communication interfaces (USCIs)
Applications of MSP430F5437AIPNR
• Analog and Digital Sensor Systems
• Digital Motor Controls
• Remote Controls
• Thermostats
• Digital Timers
• Hand-Held Meters
Environmental & Export Classifications of MSP430F5437AIPNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
