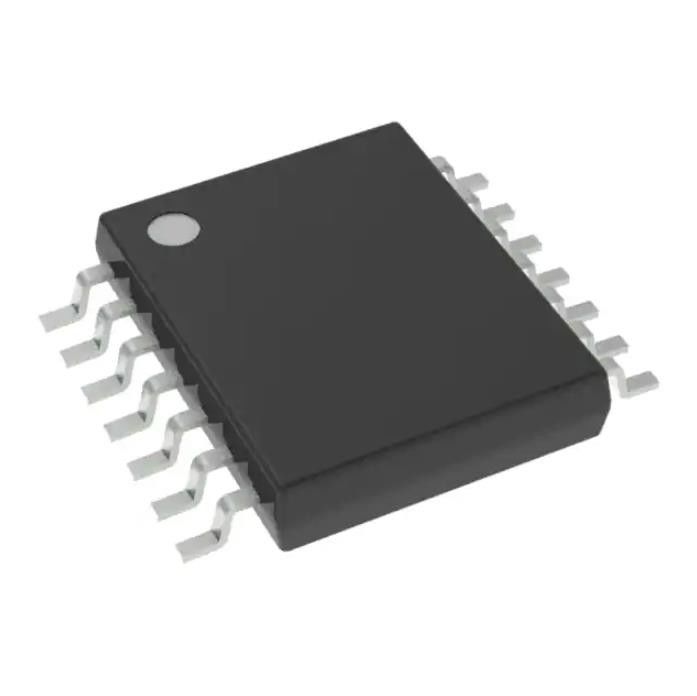

MSP430F2012IPWR Tvs Diode Smd Ic Mcu 16bit 2kb Flash 14tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430F2012IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V | Data Converters: | A/D 8x10b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 14-TSSOP | Base Product Number: | MSP430F2012 |
Product Description
MSP430F2012IPWR Tvs Diode Smd Ic Mcu 16bit 2kb Flash 14tssop
MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 2KB (2K x 8 + 256B) FLASH 14-TSSOP
Specifications of MSP430F2012IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F2xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 10 |
| Program Memory Size | 2KB (2K x 8 + 256B) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | MSP430F2012 |
FEATURES of MSP430F2012IPWR
• Low Supply Voltage Range 1.8 V to 3.6 V
• Five Power-Saving Modes
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• On-Chip Emulation Logic With Spy-Bi-Wire Interface
• For Complete Module Descriptions, See the MSP430x2xx Family User's Guide (SLAU144)
• Brownout Detector
Applications of MSP430F2012IPWR
• Allindividual I/O bits are independently programmable
• Any combination of input, output, and interruptcondition is possible
• Edge-selectable interruptinput capability forallthe eight bits of port P1 and the two bits of port P2
• Read and writeaccess to port-controlregisters is supported by allinstructions
• Each I/O has an individually programmable pullup or pulldown resistor
Environmental & Export Classifications of MSP430F2012IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
