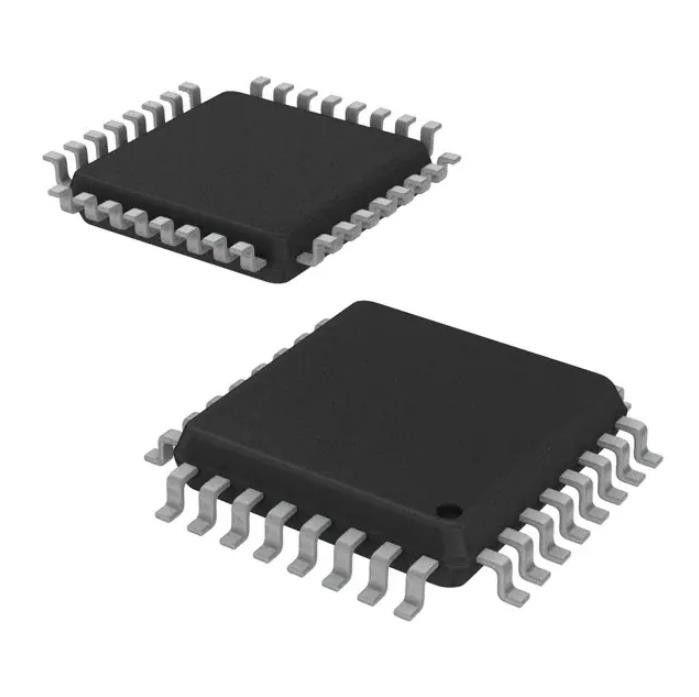

MPC9315AC Tvs Diode Smd ic Pll Clock Generator 32tqfp 2832-MPC9315AC-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MPC9315AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency - Max: | 160MHz | Divider/Multiplier: | Yes/Yes |
|---|---|---|---|
| Voltage - Supply: | 2.375V ~ 3.465V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 32-LQFP |
| Supplier Device Package: | 32-TQFP (7x7) | Base Product Number: | MPC9315 |
Product Description
MPC9315AC Tvs Diode Smdic Pll Clock Generator 32tqfp 2832-MPC9315AC-ND
PLL Clock Generator IC 160MHz 1 32-LQFP
Specifications of MPC9315AC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tray |
| Product Status | Obsolete |
| Digi-Key Programmable | Not Verified |
| Type | PLL Clock Generator |
| PLL | Yes |
| Input | LVCMOS |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 4:08 |
| Differential - Input:Output | No/No |
| Frequency - Max | 160MHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-TQFP (7x7) |
| Base Product Number | MPC9315 |
FEATURES of MPC9315AC
• Configurable 8 Outputs LVCMOS PLL Clock Generator
• Compatible to Various Microprocessors Such As PowerQUICC I and II
• Wide Range Output Clock Frequency of 18.75 to 160 MHz
• 2.5 V and 3.3 V CMOS Compatible
• Designed for Mid-Range to High-Performance Telecom, Networking and Computer Applications
• Fully Integrated PLL Supports Spread Spectrum Clocking
• Supports Applications Requiring Clock Redundancy
• Max. Output Skew of 120 ps (80 ps Within One Bank)
Applications of MPC9315AC
• Selectable Output Configurations (1:1, 2:1, 4:1, 1:2, 1:4 Frequency Ratios)
• Two Selectable LVCMOS Clock Inputs
• External PLL Feedback Path and Selectable Feedback Configuration
• Tristable Outputs
• 32-Lead LQFP Package
• Ambient Operating Temperature Range of -40 to +85C • 32-Lead Pb-Free Package
Environmental & Export Classifications of MPC9315AC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
