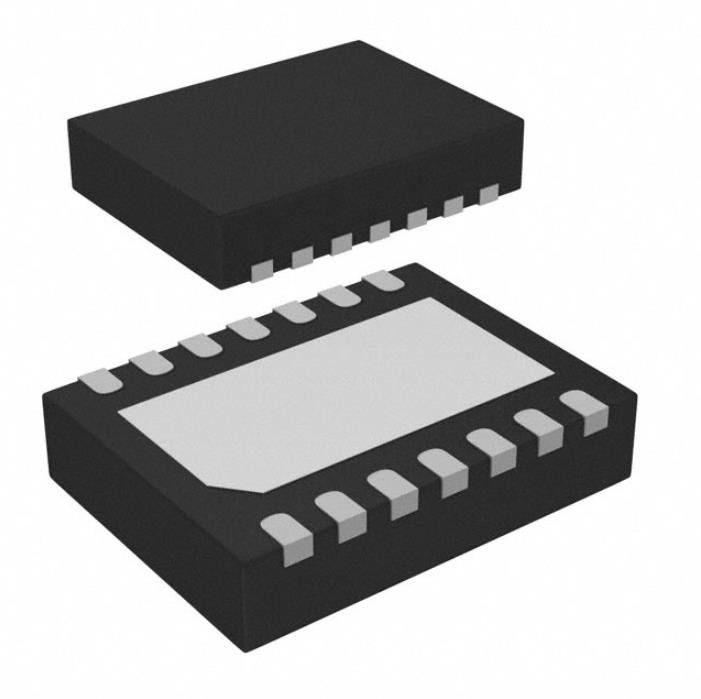

MP38891DL-LF-Z Tvs Diode Smd Ic Reg Buck Adjustable 6a 14qfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MP38891DL-LF-Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 15V |
|---|---|---|---|
| Current - Output: | 6Acuit | Frequency - Switching: | 420kHz |
| Synchronous Rectifier: | No | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 14-VFDFN Exposed Pad |
Product Description
MP38891DL-LF-Z Tvs Diode Smd Ic Reg Buck Adjustable 6a 14qfn
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 6A 14-VFDFN Exposed Pad
Specifications of MP38891DL-LF-Z
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Monolithic Power Systems Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 15V |
| Current - Output | 6A |
| Frequency - Switching | 420kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFDFN Exposed Pad |
| Supplier Device Package | 14-QFN (3x4) |
FEATURES of MP38891DL-LF-Z
• Wide 4.5V to 30V Operating Input Range
• 6A Output Current
• 50mΩ Internal Power MOSFET Switch
• Synchronizable Gate Driver Delivers up to 95% Efficiency
• Fixed 420kHz Frequency
• Synchronizable up to 1.4MHz
• Cycle-by-Cycle Over Current Protection
• Thermal Shutdown
• Output Adjustable from 0.8V to 15V
• Stable with Low ESR Output Ceramic Capacitors
• Available in a Thermally Enhanced 3mm x 4mm 14-Pin QFN Package
Applications of MP38891DL-LF-Z
• Digital Set Top Boxes
• Personal Video Recorders
• Broadband Communications
• Flat Panel Television and Monitors
Environmental & Export Classifications of MP38891DL-LF-Z
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
