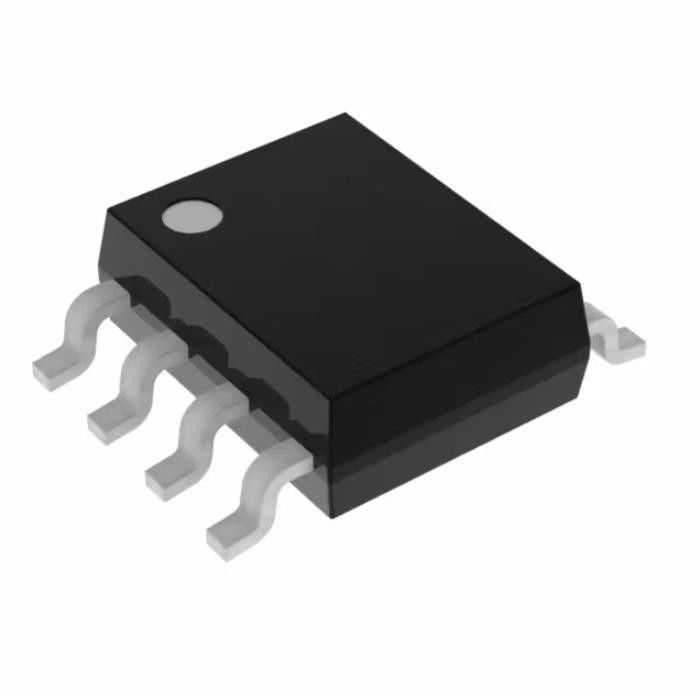

MLX90367KDC-ABV-000-RE Tvs Diode Smd Sensor Rotary 360deg Smd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MLX90367KDC-ABV-000-RE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Actuator Type: | External Magnet, Not Included | Voltage - Supply: | 4.5V ~ 5.5V |
|---|---|---|---|
| Mounting Type: | Surface Mount | Termination Style: | Gull Wing |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC | Base Product Number: | MLX90367 |
Product Description
MLX90367KDC-ABV-000-RE Tvs Diode Smd Sensor Rotary 360deg Smd
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included Gull Wing
Specifications of MLX90367KDC-ABV-000-RE
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Position Sensors | |
| Angle, Linear Position Measuring | |
| Mfr | Melexis Technologies NV |
| Series | Triaxis® |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | SENT |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MLX90367 |
FEATURES of MLX90367KDC-ABV-000-RE
• On Chip Signal Processing for Robust Absolute Position Sensing
• Simple Magnetic Design
• Programmable Measurement Range
• Programmable Linear Transfer Characteristic (Multi-points)
• SENT output (according to SAE J2716-2010)
• 12 bit Resolution - 10 bit Thermal Accuracy
• 48 bit ID Number option
• Single Die – SOIC-8 Package RoHS Compliant
• Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant
• Output Thermal Offset correction
Applications of MLX90367KDC-ABV-000-RE
• Absolute Rotary Position Sensor
• Absolute Linear Position Sensor
• Pedal Position Sensor
• Steering Wheel Position Sensor
• Throttle Position Sensor
• Float-Level Sensor
• Ride Height Position Sensor
• Non-Contacting Potentiometer
Environmental & Export Classifications of MLX90367KDC-ABV-000-RE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
