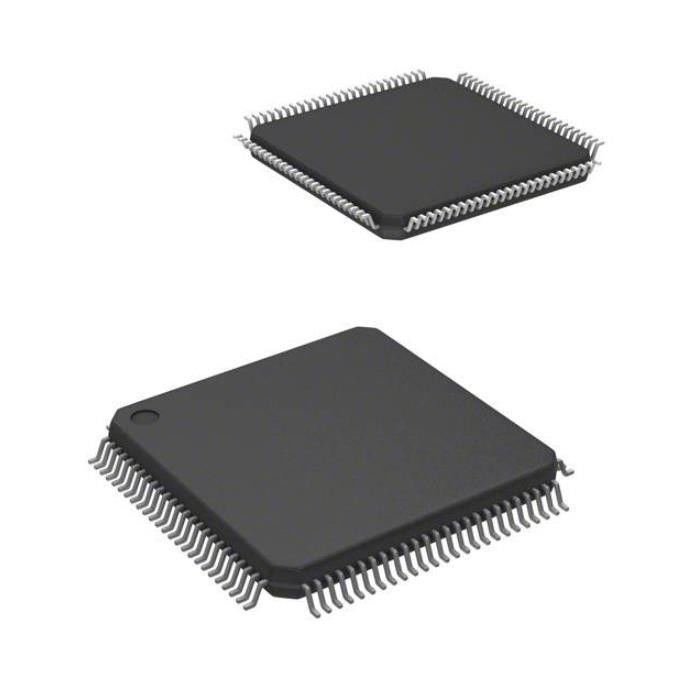

MK60DN256VLL10 Tvs Diode Smd Ic Mcu 32bit 256kb Flash 100lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MK60DN256VLL10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V | Data Converters: | A/D 33x16b; D/A 1x12b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 100-LQFP |
| Supplier Device Package: | 100-LQFP (14x14) | Base Product Number: | MK60DN256 |
Product Description
MK60DN256VLL10 Tvs Diode Smd Ic Mcu 32bit 256kb Flash 100lqfp
ARM® Cortex®-M4 Kinetis K60 Microcontroller IC 32-Bit Single-Core 100MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
Specifications of MK60DN256VLL10
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | Kinetis K60 |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 33x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | MK60DN256 |
FEATURES of MK60DN256VLL10
• Operating ratings apply during operation of the chip
• Handling ratings apply when the chip is not powered
• Never exceed any of the chip’s ratings
• During normal operation, don’t exceed any of the chip’s operating requirements
• Lies within the range of values specified by the operating behavior
• are configured for high drive strength (PORTx_PCRn[DSE]=1)
Applications of MK60DN256VLL10
• CPU and system clocks = 100 MHz
• Bus clock = 50 MHz
• FlexBus clock = 50 MHz
• Flash clock = 25 MHz
• MCG mode: FEI
Environmental & Export Classifications of MK20DN512VLK10R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
