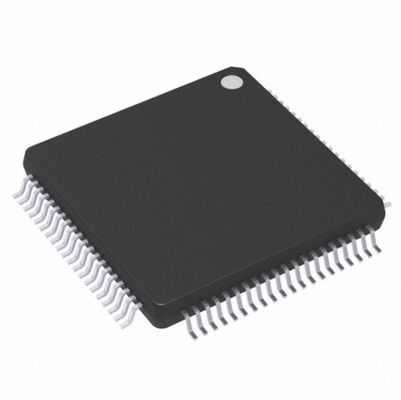

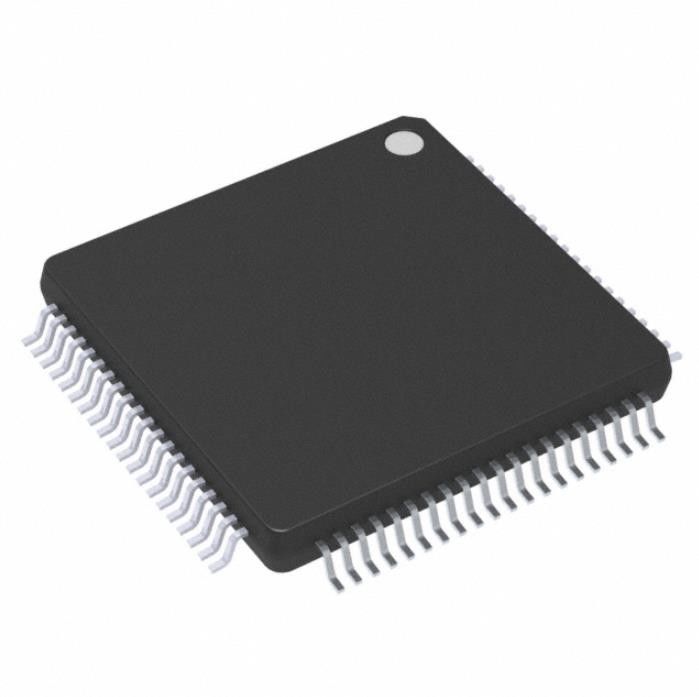

MK20DN512VLK10R Tvs Diode Smd Ic Mcu 32bit 512kb Flash 80fqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MK20DN512VLK10R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V | Data Converters: | A/D 27x16b; D/A 1x12b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 80-LQFP |
| Supplier Device Package: | 80-FQFP (12x12) | Base Product Number: | MK20DN512 |
Product Description
MK20DN512VLK10R Tvs Diode Smd Ic Mcu 32bit 512kb Flash 80fqfp
ARM® Cortex®-M4 Kinetis K20 Microcontroller IC 32-Bit Single-Core 100MHz 512KB (512K x 8) FLASH 80-FQFP (12x12)
Specifications of MK20DN512VLK10R
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | Kinetis K20 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 27x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-FQFP (12x12) |
| Base Product Number | MK20DN512 |
FEATURES of MK20DN512VLK10R
• Never exceed any of the chip’s ratings
• During normal operation, don’t exceed any of the chip’s operating requirements
• Lies within the range of values specified by the operating behavior
• USB regulator disabled
• No GPIOs toggled
• Code execution from flash with cache enabled
• For the ALLOFF curve, all peripheral clocks are disabled except FTFL
Applications of MK20DN512VLK10R
• CPU and system clocks = 100 MHz
• Bus clock = 50 MHz
• FlexBus clock = 50 MHz
• Flash clock = 25 MHz
• MCG mode: FEI
Environmental & Export Classifications of MK20DN512VLK10R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
