MIC2204YML-TR Tvs Diode Smd Ic Reg Buck Adj 600ma 10mlf 576-1070-1-ND - Cut Tape
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MIC2204YML-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 600mA | Frequency - Switching: | 2MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |

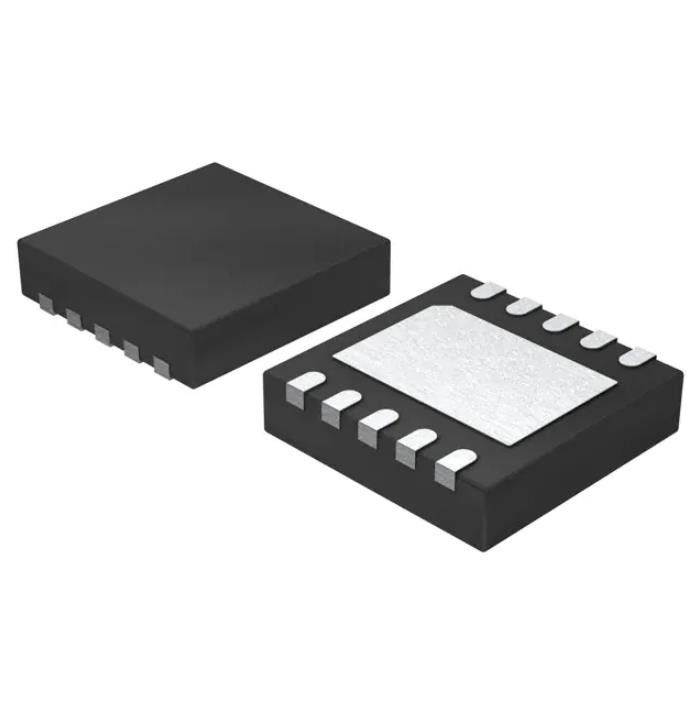

| Mounting Type: | Surface Mount | Package / Case: | 10-VFDFN Exposed Pad, 10-MLF® |
| Supplier Device Package: | 10-MLF® (3x3) | Base Product Number: | MIC2204 |
Product Description
MIC2204YML-TR Tvs Diode Smd Ic Reg Buck Adj 600ma 10mlf 576-1070-1-ND - Cut Tape
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 600mA 10-VFDFN Exposed Pad, 10-MLF®
Specifications of MIC2204YML-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 600mA |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad, 10-MLF® |
| Supplier Device Package | 10-MLF® (3x3) |
| Base Product Number | MIC2204 |
FEATURES of MIC2204YML-TR
• Input Voltage range: 2.3V to 5.5V
• Output Down to 1V/ 600 mA
• 2 MHz PWM Operation
• Ultra-Fast Transient Response (Typical 200 kHz GBW)
• Internal Compensation
• All Ceramic Capacitors
• >95% Efficiency
• Fully Integrated MOSFET Switches
• Easily Synchronized to External Clock
Applications of MIC2204YML-TR
• High-Efficiency Portable Power
• Cellular Phones/PDAs
• 802.11 WLAN Power Supplies
• RF Power Supplies
• Li-Ion Battery Powered Applications
Environmental & Export Classifications of MIC2204YML-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
