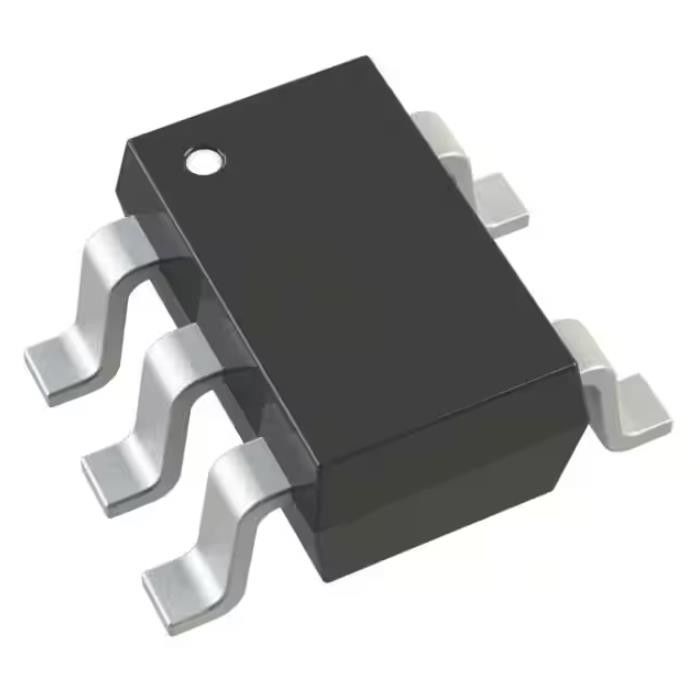

MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MCP6H01T-E/LT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Digi-Key Programmable: | Verified | Memory Type: | Non-Volatile |
|---|---|---|---|
| Memory Format: | EEPROM | Technology: | EEPROM |
| Memory Size: | 512Kbit | Memory Organization: | 64K X 8 |
| Memory Interface: | SPI | Clock Frequency: | 16 MHz |
Product Description
MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND
General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-5
Specifications of MCP6H01T-E/LT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 700 µV |
| Current - Supply | 135µA |
| Voltage - Supply Span (Min) | 3.5 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | MCP6H01 |
FEATURES of MCP6H01T-E/LT
• Input Offset Voltage: ±0.7 mV (typical)
• Quiescent Current: 135 µA (typical)
• Common Mode Rejection Ratio: 100 dB (typical)
• Power Supply Rejection Ratio: 102 dB (typical)
• Rail-to-Rail Output
• Gain Bandwidth Product: 1.2 MHz (typical)
• Slew Rate: 0.8V/µs (typical)
• Unity Gain Stable
• Extended Temperature Range: -40°C to +125°C
• No Phase Reversal
Applications of MCP6H01T-E/LT
• Automotive Power Electronics
• Industrial Control Equipment
• Battery Powered Systems
• Medical Diagnostic Instruments
Environmental & Export Classifications of MCP6H01T-E/LT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
