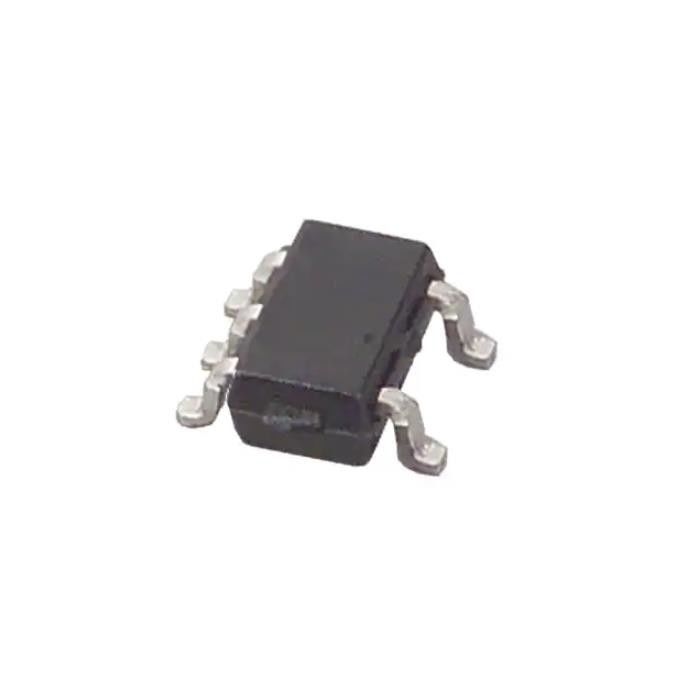

MAX8515AEXK-T Tvs Diode Smd Ic Vref Shunt Adj 0.5% Sc70-5 MAX8515AEXK+TCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX8515AEXK-T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Max): | 18 V | Current - Output: | 20 MA |
|---|---|---|---|
| Current - Cathode: | 4 MA | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package: | SC-70-5 | Base Product Number: | MAX8515 |
Product Description
MAX8515AEXK-T Tvs Diode Smd Ic Vref Shunt Adj 0.5% Sc70-5 MAX8515AEXK+TCT-ND
Shunt Voltage Reference IC Adjustable 0.6V 18 VV ±0.5% 20 mA SC-70-5
Specifications of MAX8515AEXK-T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 18 V |
| Current - Output | 20 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 4 mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | MAX8515 |
FEATURES of MAX8515AEXK-T
♦ MAX8515A 0.6V ±0.5% Initial Accuracy at +25°C 0.6V ±1% Accuracy from -40°C to +85°C
♦ MAX8515 0.6V ±1% Initial Accuracy at +25°C 0.6V ±1.8% Accuracy from -40°C to +85°C
♦ Sinks 20mA at 0.2V to 18V
♦ Input Voltage Range from 1.7V to 28V
♦ Directly Drives Optocouplers
♦ 0.2Ω Dynamic Output Impedance
♦ Space-Saving 5-Pin SC70 or SOT23 Packages
Applications of MAX8515AEXK-T
Isolated DC-to-DC Converters
Network, Telecom, and Cellular Base Station Power Supplies
Low-Dropout Linear Regulators
Shunt Regulator
Adjustable Voltage Reference
Environmental & Export Classifications of MAX8515AEXK-T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
