MAX5533EUA+T Tvs Diode Smd Ic Dac 12bit V-Out 8umax Max5533eua+T-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX5533EUA+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 12 | Number Of D/A Converters: | 2 |
| Settling Time: | 660µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI |
Product Description
MAX5533EUA+T Tvs Diode Smd Ic Dac 12bit V-Out 8umax Max5533eua+T-Nd
12 Bit Digital to Analog Converter 2 8-uMAX/uSOP
Specifications of MAX5533EUA+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 660µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±4, ±0.2 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |

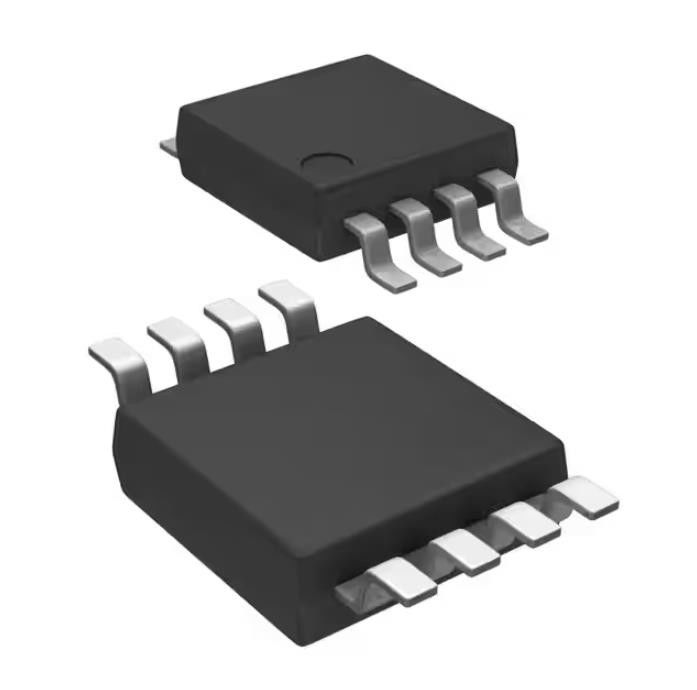

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Mounting Type | Surface Mount |
| Base Product Number | MAX5533 |
FEATURES of MAX5533EUA+T
●Ultra-Low 5μA Supply Current
● Shutdown Mode Reduces Supply Current to 0.18μA (max)
● Single +1.8V to +5.5V Supply
● Small 4mm x 4mm x 0.8mm Thin QFN Package
● Internal Reference Sources 8mA of Current (MAX5533/MAX5535)
● Flexible Force-Sense-Configured Rail-to-Rail Output Buffers
● Fast 16MHz, 3-Wire, SPI-/QSPI-/MICROWIRECompatible Serial Interface
● TTL- and CMOS-Compatible Digital Inputs with Hysteresis
● Glitch-Free Outputs During Power-Up
Applications of MAX5533EUA+T
● Portable Battery-Powered Devices
● Instrumentation
● Automatic Trimming and Calibration in Factory or Field
● Programmable Voltage and Current Sources
● Industrial Process Control and Remote Industrial Devices
● Remote Data Conversion and Monitoring
● Chemical Sensor Cell Bias for Gas Monitors
● Programmable LCD Bias
Environmental & Export Classifications of MAX5533EUA+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
