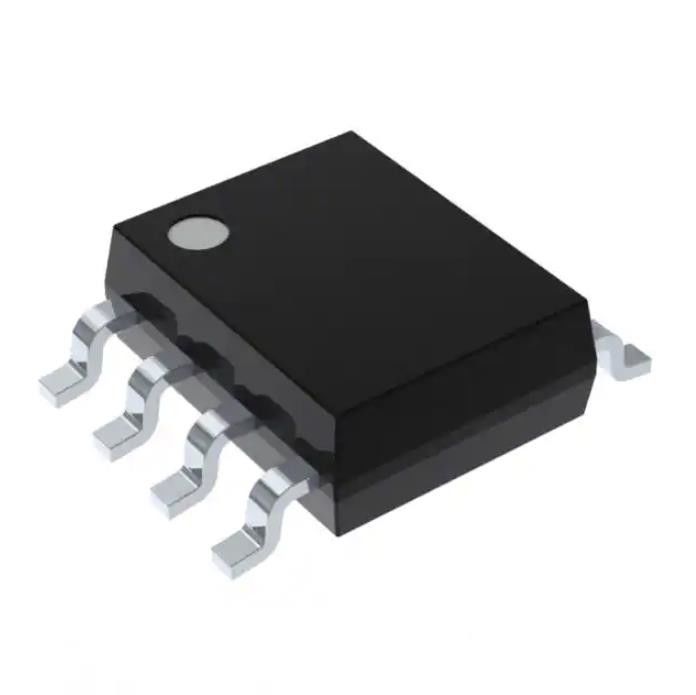

MAX3485CSA+T Tvs Diode Smd Ic Transceiver Half 1/1 8soic Max3485csa+Ct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX3485CSA+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Duplex: | Half | Receiver Hysteresis: | 50 MV |
|---|---|---|---|
| Data Rate: | 10Mbps | Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | 0°C ~ 70°C | Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package: | 8-SOIC |
Product Description
MAX3485CSA+T Tvs Diode Smd Ic Transceiver Half 1/1 8soic Max3485csa+Ct-Nd
1/1 Transceiver Half RS422, RS485 8-SOIC
Specifications of MAX3485CSA+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 50 mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX3485 |
FEATURES of MAX3485CSA+T
● Operate from a Single 3.3V Supply— No Charge Pump!
● Interoperable with +5V Logic
● 8ns Max Skew (MAX3485/MAX3490/MAX3491)
● Slew-Rate Limited for Errorless Data Transmission (MAX3483/MAX3488)
● 2nA Low-Current Shutdown Mode (MAX3483/MAX3485/MAX3486/MAX3491)
● -7V to +12V Common-Mode Input Voltage Range
● Allows up to 32 Transceivers on the Bus
● Full-Duplex and Half-Duplex Versions Available
● Industry Standard 75176 Pinout (MAX3483/MAX3485/MAX3486)
● Current-Limiting and T
Applications of MAX3485CSA+T
● Low-Power RS-485/RS-422 Transceivers
● Telecommunications
● Transceivers for EMI-Sensitive Applications
● Industrial-Control Local Area Networks
Environmental & Export Classifications of MAX3485CSA+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
