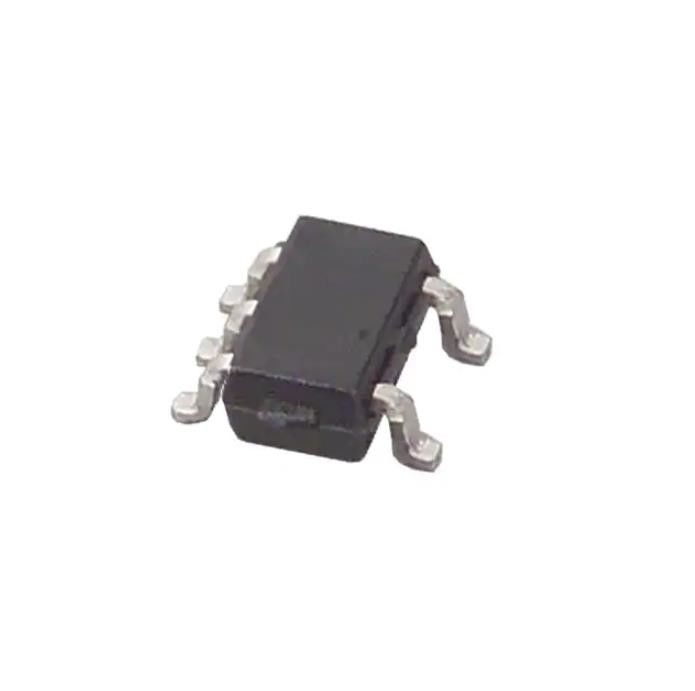

MAX2204EXK+T Tvs Diode Smd Ic Rf Detect 450mhz-2.5ghz Sc70 Max2204exk+Tct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX2204EXK+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Frequency: | 450MHz ~ 2.5GHz |
|---|---|---|---|
| RF Type: | Cellular, W-CDMA | Input Range: | -16dBm ~ 5dBm |
| Accuracy: | ±0.5dB | Voltage - Supply: | 2.7V ~ 3.3V |
| Current - Supply: | 1.2 MA | Mounting Type: | Surface Mount |
Product Description
MAX2204EXK+T Tvs Diode Smd Ic Rf Detect 450mhz-2.5ghz Sc70 Max2204exk+Tct-Nd
RF Detector IC Cellular, W-CDMA 450MHz ~ 2.5GHz -16dBm ~ 5dBm ±0.5dB 5-TSSOP, SC-70-5, SOT-353
Specifications of MAX2204EXK+T
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Frequency | 450MHz ~ 2.5GHz |
| RF Type | Cellular, W-CDMA |
| Input Range | -16dBm ~ 5dBm |
| Accuracy | ±0.5dB |
| Voltage - Supply | 2.7V ~ 3.3V |
| Current - Supply | 1.2 mA |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | MAX2204 |
FEATURES of MAX2204EXK+T
♦ -16dBm to +5dBm Detection Range
♦ ±0.3dB Detection Error Due to Temperature
♦ +2.7V to +3.3V Single-Supply Operation
♦ Easy-to-Assemble, Lead-Free, 5-Pin SC70 Package
Applications of MAX2204EXK+T
♦ WCDMA, cdma2000
♦ High-Speed Downlink Packet Access (HSDPA)
♦ High-Speed Uplink Packet Access (HSUPA)
Environmental & Export Classifications of MAX2204EXK+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
