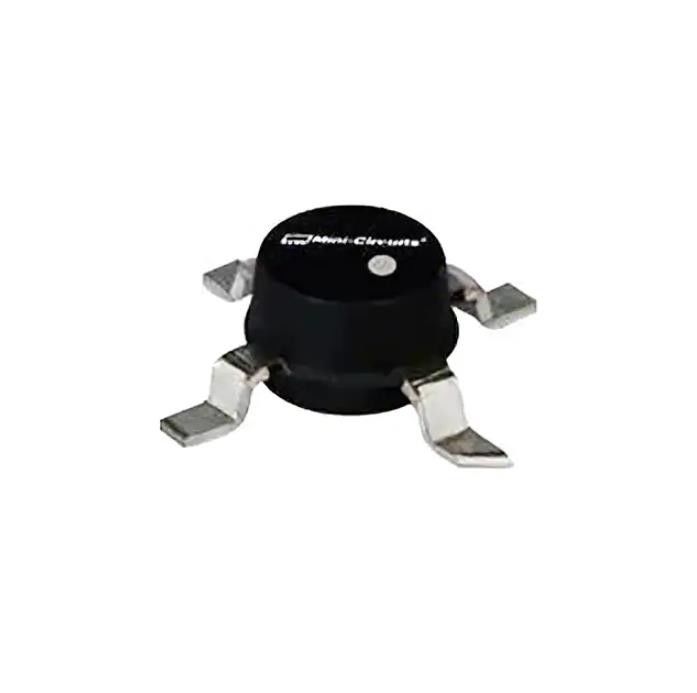

MAR-8ASM+ Tvs Diode Smd Ic Rf Amp Cellular 0hz-1ghz 4smd Mini-Circuits
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAR-8ASM+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Frequency: | 0Hz ~ 1GHz |
|---|---|---|---|
| P1dB: | 12.5dBm | Gain: | 25dB |
| Noise Figure: | 3.1dB | RF Type: | Cellular, PCN |
| Voltage - Supply: | 3.7V | Current - Supply: | 36mA |
Product Description
MAR-8ASM+ Tvs Diode Smd Ic Rf Amp Cellular 0hz-1ghz 4smd Mini-Circuits
RF Amplifier IC Cellular, PCN 0Hz ~ 1GHz
Specifications of MAR-8ASM+
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Amplifiers | |
| Mfr | Mini-Circuits |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Frequency | 0Hz ~ 1GHz |
| P1dB | 12.5dBm |
| Gain | 25dB |
| Noise Figure | 3.1dB |
| RF Type | Cellular, PCN |
| Voltage - Supply | 3.7V |
| Current - Supply | 36mA |
| Test Frequency | 1GHz |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
FEATURES of MAR-8ASM+
• Exact footprint substitute for MAR-8SM and MSA-0886a,b Benefits:
• lower device voltage, 3.7 typ.
• lower power dissipation in the MMIC
• may eliminate need for choke (RFC)
• High gain, 31.5 dB at 0.1GHz, reduces component count
• High power output, +12.5 dBm typ.
• Internally Matched to 50 Ohms
• Low noise
• Improved stability
• Protection against power supply transients
• Protected by US Patent, 6,943,629
Applications of MAR-8ASM+
• Cellular
• PCN instrumentation
Environmental & Export Classifications of MAR-8ASM+
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
