M95512-WMN6TP Tvs Diode Smd Ic Eeprom 512kbit Spi 8soic 497-8697-1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M95512-WMN6TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Verified |
|---|---|---|---|
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
| Technology: | EEPROM | Memory Size: | 512Kbit |
| Memory Organization: | 64K X 8 | Memory Interface: | SPI |
Product Description
M95512-WMN6TP Tvs Diode Smd Ic Eeprom 512kbit Spi 8soic 497-8697-1-Nd

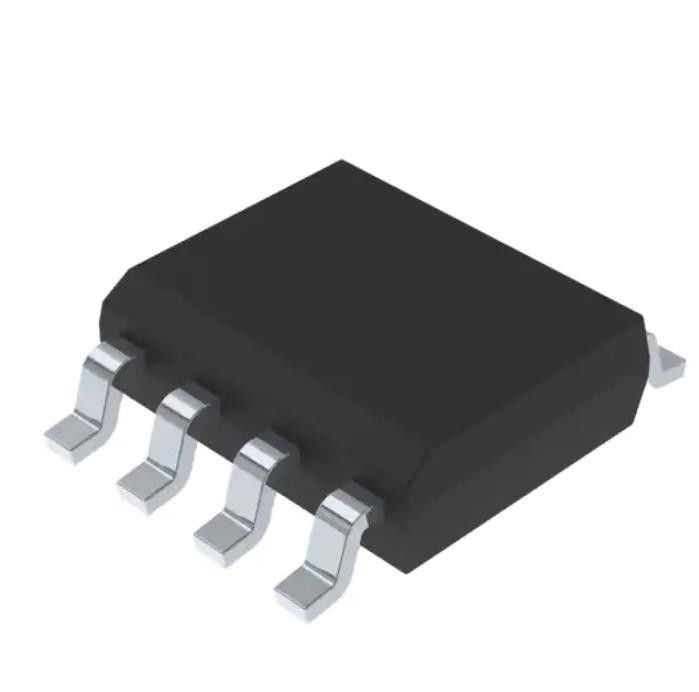

EEPROM Memory IC 512Kbit SPI 16 MHz 8-SOIC
Specifications of M95512-WMN6TP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 512Kbit |
| Memory Organization | 64K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 16 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M95512 |
FEATURES of M95512-WMN6TP
• Compatible with the serial peripheral interface (SPI) bus
• Memory array
– 512-Kbit (64-Kbyte) of EEPROM
– Page size: 128 bytes
– Additional write lockable page (Identification page)
• Write time
– Byte Write within 5 ms
– Page Write within 5 ms
• Write protect
– quarter array
– half array
– whole memory array
• High-speed clock: 16 MHz
• Single supply voltage:
– 2.5 V to 5.5 V for M95512-W
– 1.8 V to 5.5 V for M95512-R
– 1.7 V to 5.5 V for M95512-DF
• Operating temperature range: from -40 °C up to +85 °C
• Enhanced ESD protection
• More than 4 million Write cycles
• More than 200-year data retention
• Packages
– SO8N (ECOPACK2)
– TSSOP8 (ECOPACK2)
– UFDFPN8 (ECOPACK2)
– WLCSP8 (ECOPACK2)
Power-down of M95512-WMN6TP
During power-down (continuous decrease of the VCC supply voltage below the minimum VCC operating voltage defined in Section 9 DC and AC parameters), the device must be:
• deselected (Chip select S must be allowed to follow the voltage applied on VCC)
• in Standby power mode (there must not be any internal write cycle in progress)
Environmental & Export Classifications of M95512-WMN6TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
