M4A5-128/64-7VNC Tvs Diode Smd M4a5-128/64-7vnc 220-1831-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M4A5-128/64-7VNC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | IspMACH® 4A | Package: | Tray |
|---|---|---|---|
| Product Status: | Not For New Designs | Digi-Key Programmable: | Not Verified |
| Programmable Type: | In System Programmable | Delay Time Tpd(1) Max: | 7.5 Ns |
| Voltage Supply - Internal: | 4.75V ~ 5.25V | Number Of Macrocells: | 128 |
Product Description
M4A5-128/64-7VNC Tvs Diode Smd M4a5-128/64-7vnc 220-1831-Nd

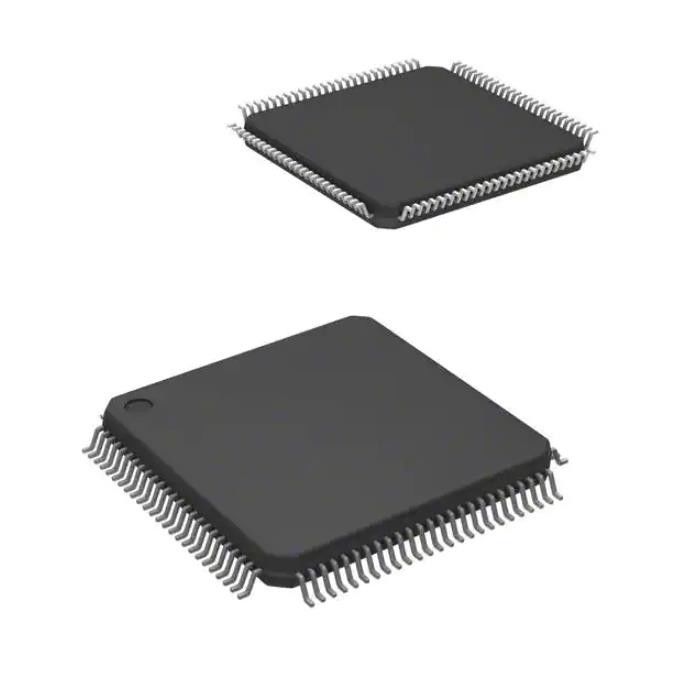

IC CPLD 128MC 7.5NS 100TQFP
Specifications of M4A5-128/64-7VNC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Mfr | Lattice Semiconductor Corporation |
| Series | ispMACH® 4A |
| Package | Tray |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 7.5 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of Macrocells | 128 |
| Number of I/O | 64 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | M4A5-128 |
FEATURES of M4A5-128/64-7VNC
◆ High-performance, E2 CMOS 3.3-V & 5-V CPLD families
◆ Flexible architecture for rapid logic designs
— Excellent First-Time-FitTM and refit feature
— SpeedLockingTM performance for guaranteed fixed timing
— Central, input and output switch matrices for 100% routability and 100% pin-out retention
◆ High speed
— 5.0ns tPD Commercial and 7.5ns tPD Industrial
— 182MHz fCNT
◆ 32 to 512 macrocells; 32 to 768 registers
◆ 44 to 388 pins in PLCC, PQFP, TQFP, BGA, fpBGA and caBGA packages
◆ Flexible architecture for a wide range of design styles
— D/T registers and latches
— Synchronous or asynchronous mode
— Dedicated input registers
— Programmable polarity
— Reset/ preset swapping
◆ Advanced capabilities for easy system integration
— 3.3-V & 5-V JEDEC-compliant operations
— JTAG (IEEE 1149.1) compliant for boundary scan testing
— 3.3-V & 5-V JTAG in-system programming
— PCI compliant (-5/-55/-6/-65/-7/-10/-12 speed grades)
— Safe for mixed supply voltage system designs
— Programmable pull-up or Bus-FriendlyTM inputs and I/Os
— Hot-socketing
— Programmable security bit
— Individual output slew rate control
◆ Advanced E2 CMOS process provides high-performance, cost-effective solutions
◆ Lead-free package options
Applications of M4A5-128/64-7VNC
◆ Product-term array
◆ Logic allocator
◆ Macrocells
◆ Output switch matrix
◆ I/O cells
◆ Input switch matrix
◆ Clock generator
Environmental & Export Classifications of M4A5-128/64-7VNC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
