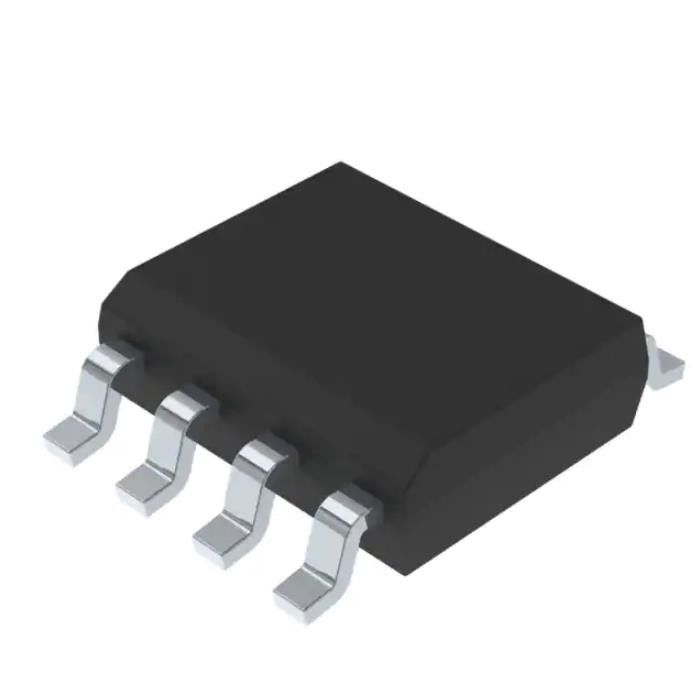

M24C08-RMN6TP TVS DIODE SMD IC EEPROM 8KBIT I2C 400KHZ 8SOIC 497-8637-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M24C08-RMN6TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Verified |
|---|---|---|---|
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
| Technology: | EEPROM | Memory Size: | 8Kbit |
| Memory Organization: | 1K X 8 | Memory Interface: | I²C |
Product Description
M24C08-RMN6TP TVS DIODE SMD IC EEPROM 8KBIT I2C 400KHZ 8SOIC 497-8637-1-ND
EEPROM Memory IC 8Kbit I²C 400 kHz 900 ns 8-SOIC
Specifications of M24C08-RMN6TP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 8Kbit |
| Memory Organization | 1K x 8 |
| Memory Interface | I²C |
| Clock Frequency | 400 kHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 ns |
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M24C08 |
FEATURES of M24C08-RMN6TP
• Compatible with following I2C bus modes:
– 400 kHz
– 100 kHz
• Memory array:
– 8 Kbit (1 Kbyte) of EEPROM
– Page size: 16 byte
• Single supply voltage:
– M24C08-W: 2.5 V to 5.5 V
– M24C08-R: 1.8 V to 5.5 V
– M24C08-F: 1.7 V to 5.5 V 1.6 V to 5.5 V (under temperature constraint)
• Write:
– Byte write within 5 ms
– Page write within 5 ms
• Operating temperature range:
– from -40 °C up to +85 °C
• Random and sequential read modes
• Write protect of the whole memory array
• Enhanced ESD/latch-Up protection
• More than 4 million write cycles
• More than 200-years data retention
Applications of M24C08-RMN6TP
• SO8N (ECOPACK2)
• TSSOP8 (ECOPACK2)
• UFDFPN8 (ECOPACK2)
• UFDFPN5 (ECOPACK2)
• WLCSP (ECOPACK2)
Environmental & Export Classifications of M24C08-RMN6TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
