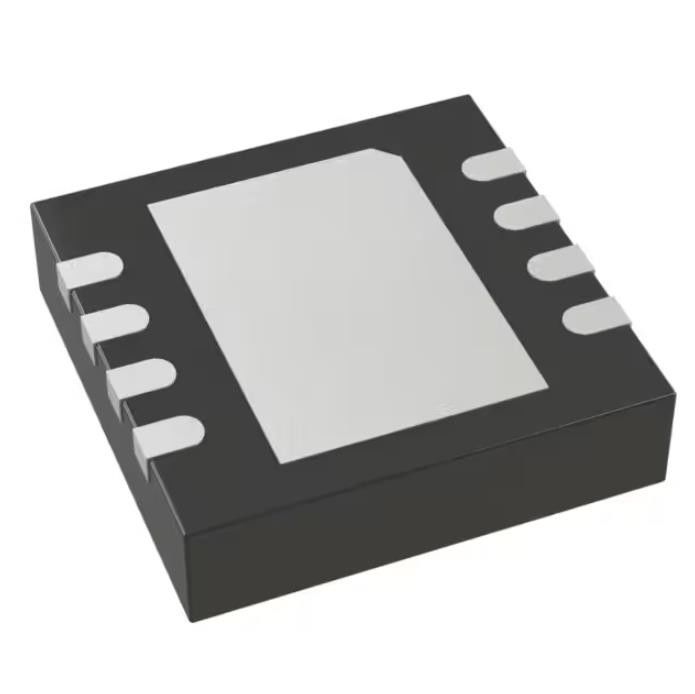

LT3060IDC#TRPBF Tvs Diode Smd Ic Reg Linear Pos Adj 100ma 8dfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3060IDC#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 45V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 44.5V | Voltage Dropout (Max): | 0.51V @ 100mA |
Product Description
Linear Voltage Regulator IC Positive Adjustable 1 Output 100mA 8-DFN (2x2)
Specifications of LT3060IDC#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 44.5V |
| Voltage Dropout (Max) | 0.51V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 80 µA |
| Current - Supply (Max) | 4 mA |
| PSRR | 85dB (120Hz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) |
| Base Product Number | LT3060 |
FEATURES of LT3060IDC#TRPBF
• Input Voltage Range: 1.6V to 45V
• Output Current: 100mA
• Quiescent Current: 40µA
• Dropout Voltage: 300mV
• Low Noise: 30µVRMS (10Hz to 100kHz)
• Adjustable Output: VREF = 600mV
• Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, 15V
• Output Tolerance: ±2% Over Line, Load and Temperature
• Single Capacitor Soft-Starts Reference and Lowers Output Noise
• Shutdown Current: < 1µA
• Reverse Battery Protection
• Current Limit Foldback Protection
• Thermal Limit Protection
• 8-Lead 2mm × 2mm × 0.75mm DFN and 8-Lead ThinSOT™ Packages
• AEC-Q100 Qualified for Automotive Applications
Applications of LT3060IDC#TRPBF
Environmental & Export Classifications of LT3060IDC#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
