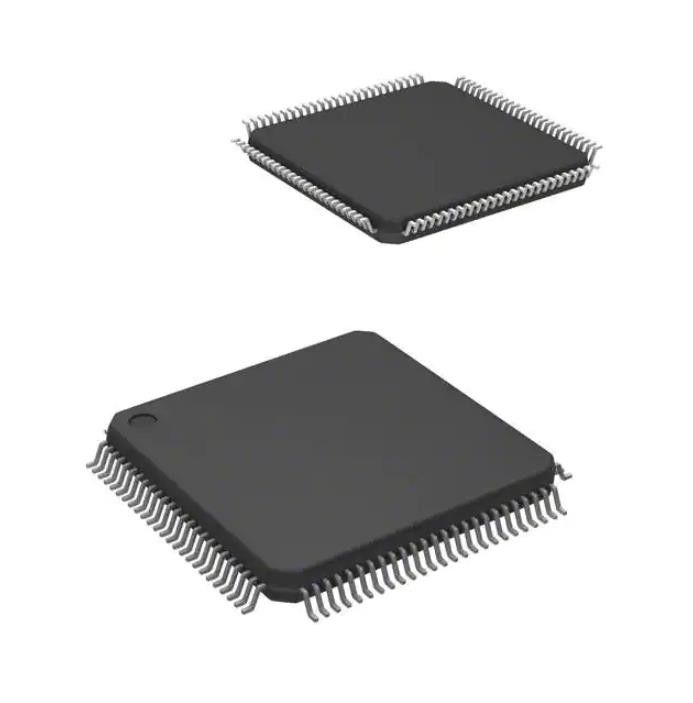

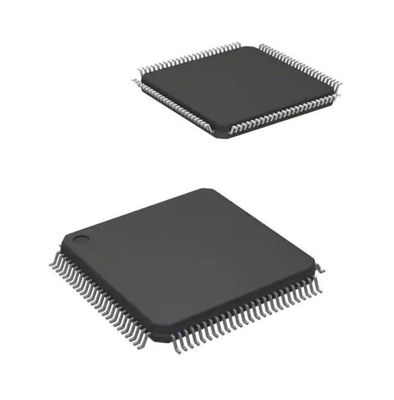

LPC54606J512BD100E Tvs Diode Smd Ic Mcu 32bit 512kb Flash 100lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LPC54606J512BD100E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of I/O: | 64 | Program Memory Size: | 512KB (512K X 8) |
|---|---|---|---|
| Program Memory Type: | FLASH | EEPROM Size: | 16K X 8 |
| RAM Size: | 200K X 8 | Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V |
| Data Converters: | A/D 12x12b | Oscillator Type: | Internal |
Product Description
ARM® Cortex®-M4 LPC546xx Microcontroller IC 32-Bit Single-Core 180MHz 512KB (512K x 8) FLASH 100-LQFP (14x14)
Specifications of LPC54606J512BD100E
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | LPC546xx |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, Ethernet, I²C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 200K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | LPC54606 |
FEATURES of LPC54606J512BD100E
• ARM Cortex-M4 core (version r0p1):
• ARM Cortex-M4 processor, running at a frequency of up to 220 MHz.
• The LPC5460x/61x devices operate at CPU frequencies of up to 180 MHz. The LPC54628 device operates at CPU frequencies of up to 220 MHz.
• Floating Point Unit (FPU) and Memory Protection Unit (MPU).
• ARM Cortex-M4 built-in Nested Vectored Interrupt Controller (NVIC).
• Non-maskable Interrupt (NMI) input with a
selection of sources.
• Serial Wire Debug (SWD) with six instruction breakpoints, two literal comparators, and four watch points. Includes Serial Wire Output and ETM Trace for enhanced debug capabilities, and a debug timestamp counter.
• System tick timer
Applications of LPC54606J512BD100E
• Single power supply 1.71 V to 3.6 V.
• Power-On Reset (POR).
• Brown-Out Detect (BOD) with separate thresholds for interrupt andforced reset .
• JTAG boundary scan supported.
• 128 bit unique device serial number for identification.
• Operating temperature range ?40 °C to +105 °C.
• Available in TFBGA180, TFBGA100, LQFP208, and LQFP100 packages.
Environmental & Export Classifications of LPC54606J512BD100E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
