LP5907A33YKMR Tvs Diode Smd Ic Reg Linear 3.3v 250ma 4dsbga 296-49818-1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP5907A33YKMR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage Dropout (Max): | 0.2V @ 250mA | Current - Output: | 250mA |
|---|---|---|---|
| Current - Quiescent (Iq): | 25 µA | PSRR: | 90dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features: | Enable | Protection Features: | Over Current, Short Circuit |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
Product Description
LP5907A33YKMR Tvs Diode Smd Ic Reg Linear 3.3v 250ma 4dsbga 296-49818-1-Nd

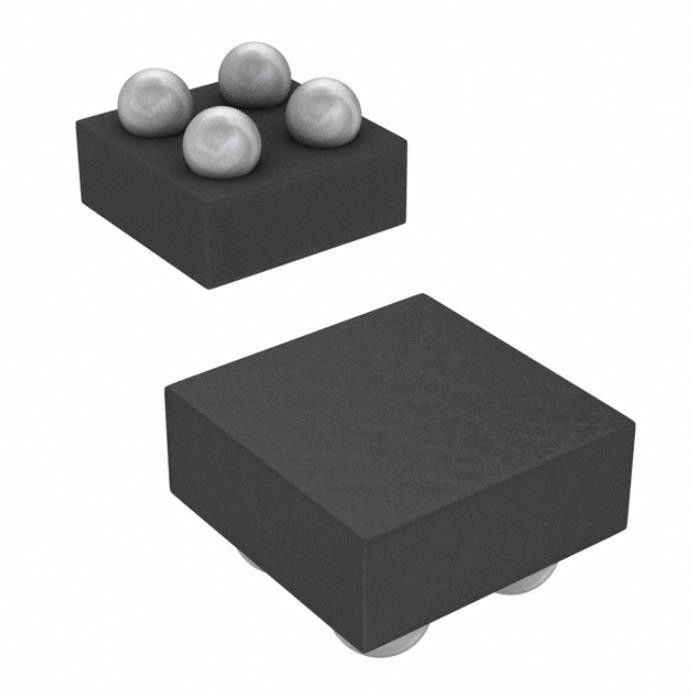

Linear Voltage Regulator IC Positive Fixed 1 Output 250mA 4-DSBGA (0.65x0.65)
Specifications of LP5907A33YKMR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 25 µA |
| PSRR | 90dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (0.65x0.65) |
| Base Product Number | LP5907 |
FEATURES of LP5907A33YKMR
• Input voltage range: 2.2 V to 5.5 V
• Output voltage range: 1.2 V to 4.5 V
• Stable with 1-µF ceramic input and output capacitors
• No noise bypass capacitor required
• Remote output capacitor placement
• Thermal-overload and short-circuit protection
• –40°C to 125°C operating junction temperature
• Low output voltage noise: 6.5 µVRMS
• PSRR: 82 dB at 1 kHz
• Output voltage tolerance: 2%
• Very low IQ (enabled): 12 µA
• Low dropout: 120 mV (typical)
• Create a custom design using the LP5907 with the WEBENCH® Power Designer
Applications of LP5907A33YKMR
• Smartphones
• Tablets
• Communications equipment
• Digital still cameras
• Factory automation
Environmental & Export Classifications of LP5907A33YKMR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
