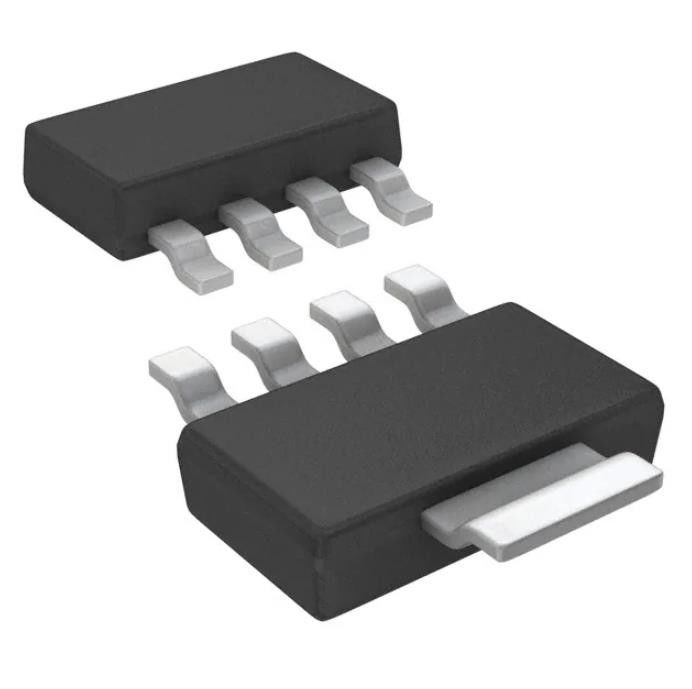

LP38693MP-3.3 Tvs Diode Smd Ic Reg Lin 3.3v 500ma Sot223-5 Lp38693mp-3.3ct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP38693MP-3.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage Dropout (Max): | 0.55V @ 500mA | Current - Output: | 500mA |
|---|---|---|---|
| Current - Quiescent (Iq): | 55 µA | Current - Supply (Max): | 55dB (120Hz) |
| Control Features: | Enable | Protection Features: | Over Temperature |
| Operating Temperature: | -40°C ~ 125°C | ||
Product Description
LP38693MP-3.3 Tvs Diode Smd Ic Reg Lin 3.3v 500ma Sot223-5 Lp38693mp-3.3ct-Nd
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-5
Specifications of LP38693MP-3.3
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-5, TO-261AB |
| Supplier Device Package | SOT-223-5 |
| Base Product Number | LP38693 |
FEATURES of LP38693MP-3.3
• Wide Input Voltage Range (2.7 V to 10 V)
• All WSON Options are Available as AEC-Q100 Grade 1
• 2% Output Accuracy (25°C)
• Low Dropout Voltage: 250 mV at 500 mA (Typical, 5 V Out)
• Precision (Trimmed) Bandgap Reference
• Ensured Specifications for –40°C to 125°C
• 1-µA Off-State Quiescent Current
• Thermal Overload Protection
• Foldback Current Limiting
• Ground Pin Current: 55 µA (typical) at full load
• Enable Pin (LP38693)
Applications of LP38693MP-3.3
• Hard Disk Drives
• Notebook Computers
• Battery-Powered Devices
• Portable Instrumentation
Environmental & Export Classifications of LP38693MP-3.3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
