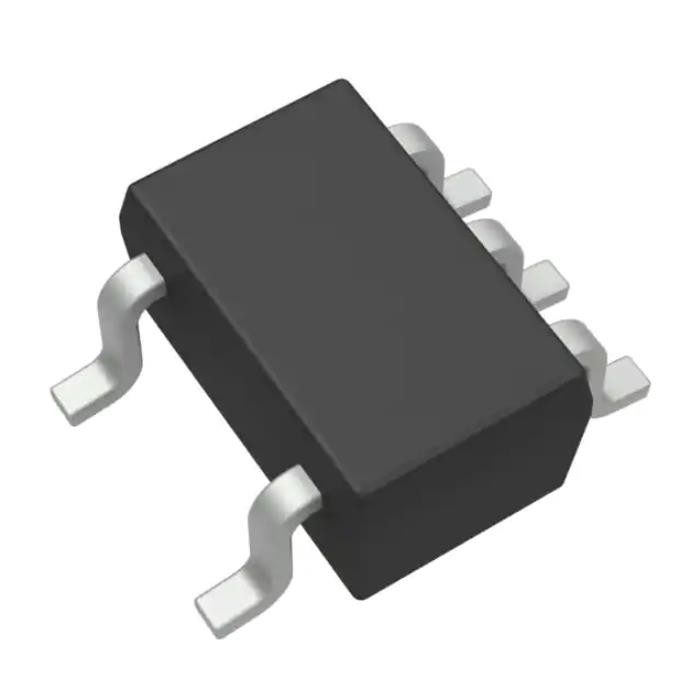

LMV831MG/NOPB Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 LMV831MG/NOPBCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV831MG/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output / Channel: | 66 MA | Voltage - Supply Span (Min): | 2.7 V |
|---|---|---|---|
| Voltage - Supply Span (Max): | 5.5 V | Current - Input Bias: | 0.1 PA |
| Mounting Type: | Surface Mount | Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package: | SC-70-5 | Base Product Number: | LMV831 |
Product Description
LMV831MG/NOPB Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 LMV831MG/NOPBCT-ND
General Purpose Amplifier 1 Circuit SC-70-5
Specifications of LMV831MG/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 3.3 MHz |
| Current - Input Bias | 0.1 pA |
| Voltage - Input Offset | 250 µV |
| Current - Supply | 250µA |
| Current - Output / Channel | 66 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | LMV831 |
FEATURES of LMV831MG/NOPB
• Unless Otherwise Noted, Typical Values at TA 25°C, V + 3.3 V
• Supply Voltage 2.7 V to 5.5 V
• Supply Current (per Channel) 240 µA
• Input Offset Voltage 1-mV Maximum
• Input Bias Current 0.1 pA
• GBW 3.3 MHz
• EMIRR at 1.8 GHz 120 dB
• Input Noise Voltage at 1 kHz 12 nV/√Hz
• Slew Rate 2 V/µs
• Output Voltage Swing Rail-to-Rail
• Output Current Drive 30 mA
• Operating Ambient Temperature Range −40°C to 125°C
Applications of LMV831MG/NOPB
• Photodiode Preamps
• Piezoelectric Sensors
• Portable/Battery-Powered Electronic Equipment
• Filters and Buffers
• PDAs and Phone Accessories
Environmental & Export Classifications of LMV831MG/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
