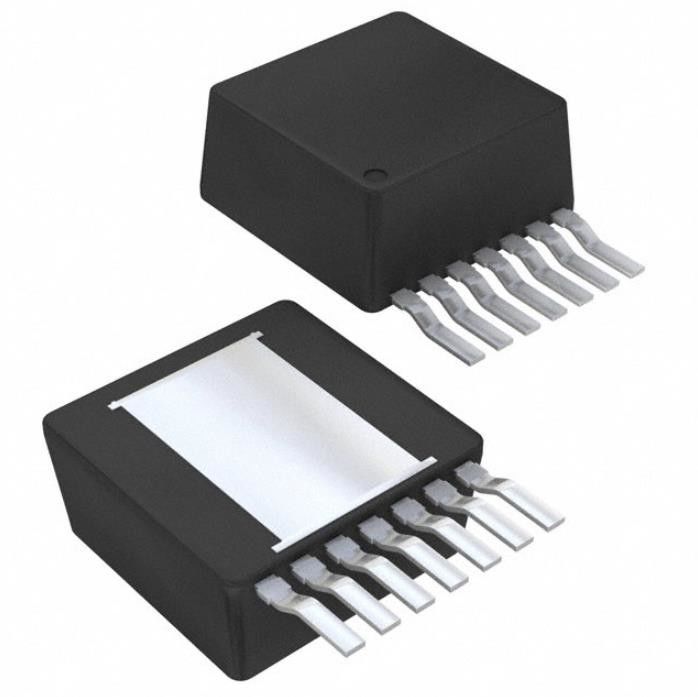

LMZ14202TZX-ADJ/NOPB Tvs Diode Smd Dc Dc Converter 0.8-6v NOPB-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMZ14202TZX-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Operating Temperature: | -40°C ~ 125°C | Efficiency: | 90% |
|---|---|---|---|
| Mounting Type: | Surface Mount | Package / Case: | TO-PMOD-7, Power Module |
| Size / Dimension: | 0.40" L X 0.39" W X 0.18" H (10.2mm X 9.9mm X 4.6mm) | Supplier Device Package: | TO-PMOD-7 |
| Control Features: | Enable, Active High | Base Product Number: | LMZ14202 |
Product Description
LMZ14202TZX-ADJ/NOPB Tvs Diode Smd Dc Dc Converter 0.8-6v NOPB-ND
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 2A 6V - 42V Input
Specifications of LMZ14202TZX-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 42V |
| Voltage - Output 1 | 0.8 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 2A |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 90% |
| Mounting Type | Surface Mount |
| Package / Case | TO-PMOD-7, Power Module |
| Size / Dimension | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
| Supplier Device Package | TO-PMOD-7 |
| Control Features | Enable, Active High |
| Base Product Number | LMZ14202 |
FEATURES of LMZ14202TZX-ADJ/NOPB
• Integrated Shielded Inductor
• Simple PCB Layout
• Junction Temperature Range: –40°C to 125°C
• Low Output Voltage Ripple
• Pin-to-Pin Compatible Family:
• Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
Applications of LMZ14202TZX-ADJ/NOPB
• Time-Critical Projects
• Negative Output Voltage Applications (See AN-2027) SNVA425
• Point of Load Conversions from 12-V and 24-V Input Rail
• Space Constrained and High Thermal Requirement Applications Easy-To-Use, 7-Pin Package PFM 7-Pin Package
Environmental & Export Classifications of LMZ14202TZX-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
