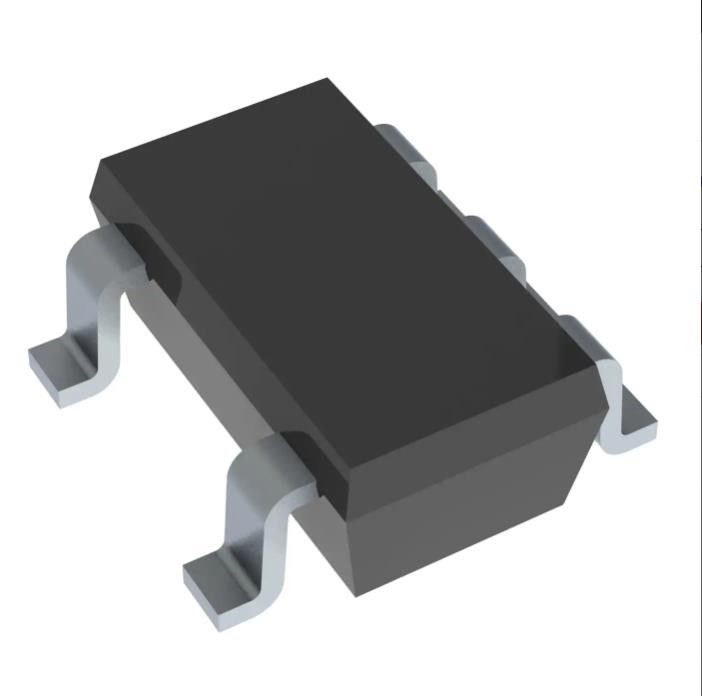

LMV331QDBVRQ1 Tvs Diode Smd Ic Comparator 1 Gen Pur Sot23-5 296-24709-6-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV331QDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input Offset (Max): | 7mV @ 5V | Current - Input Bias (Max): | 0.025µA @ 5V |
|---|---|---|---|
| Propagation Delay (Max): | 600ns | Current - Output (Typ): | 84mA @ 5V |
| Package / Case: | SC-74A, SOT-753 | Mounting Type: | Surface Mount |
| Supplier Device Package: | SOT-23-5 | ||
Product Description
LMV331QDBVRQ1 Tvs Diode Smd Ic Comparator 1 Gen Pur Sot23-5 296-24709-6-ND
Comparator General Purpose Open-Collector SOT-23-5
Specifications of LMV331QDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Open-Collector |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Current - Input Bias (Max) | 0.025µA @ 5V |
| Current - Output (Typ) | 84mA @ 5V |
| Current - Quiescent (Max) | 150µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 600ns |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMV331 |
FEATURES of LMV331QDBVRQ1
• Qualified for Automotive Applications
• 2.7-V and 5-V Performance
• Low Supply Current – LMV331 . . . 60 μA Typ – LMV393 . . . 100 μA Typ
• Input Common-Mode Voltage Range Includes Ground
• Low Output Saturation Voltage . . . 200 mV Typ
• Open-Collector Output for Maximum Flexibility
Applications of LMV331QDBVRQ1
• The LMV393-Q1
• is the single-comparator version
• which operate from 5 V to 30 V
• LM393 and LM339
Environmental & Export Classifications of LMV331QDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
