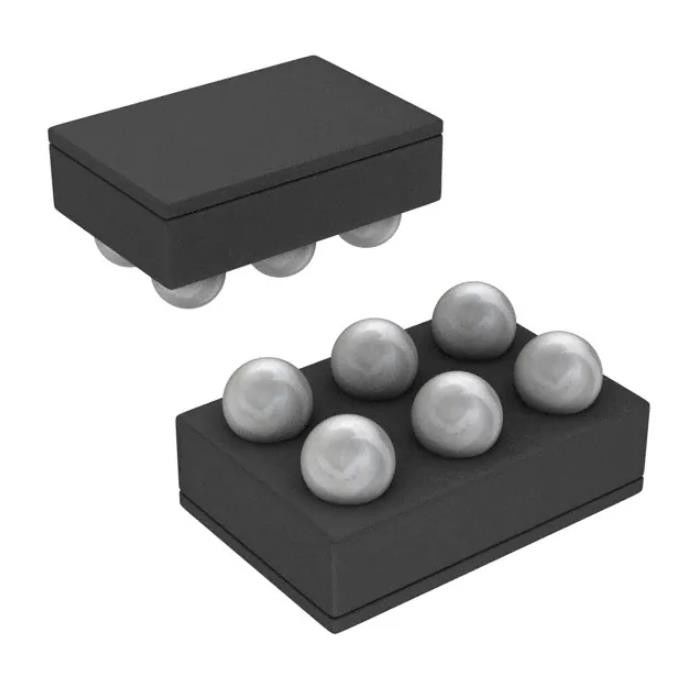

LMH2110TM/NOPB Tvs Diode Smd Ic Rf Detect 50mhz-8ghz 6dsbga LMH2110TM/NOPBCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMH2110TM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Frequency: | 50MHz ~ 8GHz |
|---|---|---|---|
| RF Type: | GSM, EDGE, CDMA | Input Range: | -40dBm ~ 5dBm |
| Accuracy: | ±0.5dB | Voltage - Supply: | 2.7V ~ 5V |
| Mounting Type: | Surface Mount | Package / Case: | 6-WFBGA, DSBGA |
Product Description
LMH2110TM/NOPB Tvs Diode Smd Ic Rf Detect 50mhz-8ghz 6dsbga LMH2110TM/NOPBCT-ND
RF Detector IC GSM, EDGE, CDMA 50MHz ~ 8GHz -40dBm ~ 5dBm ±0.5dB 6-WFBGA, DSBGA
Specifications of LMH2110TM/NOPB
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Frequency | 50MHz ~ 8GHz |
| RF Type | GSM, EDGE, CDMA |
| Input Range | -40dBm ~ 5dBm |
| Accuracy | ±0.5dB |
| Voltage - Supply | 2.7V ~ 5V |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA |
| Base Product Number | LMH2110 |
FEATURES of LMH2110TM/NOPB
• Wide Supply Range from 2.7 V to 5 V
• Logarithmic Root Mean Square Response
• 45-dB Linear-in-dB Power Detection Range
• Multi-Band Operation from 50 MHz to 8 GHz
• LOG Conformance Better than ±0.5 dB
• Highly Temperature Insensitive, ±0.25 dB
• Modulation Independent Response, 0.08 dB
• Minimal Slope and Intercept Variation
• Shutdown Functionality
• Tiny 6-Bump DSBGA Package
Applications of LMH2110TM/NOPB
• Multi-Mode, Multi-Band RF Power Control
– GSM/EDGE
– CDMA/CDMA2000
– W-CDMA
– OFDMA
– LTE
• Infrastructure RF Power Contro
Environmental & Export Classifications of LMH2110TM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
