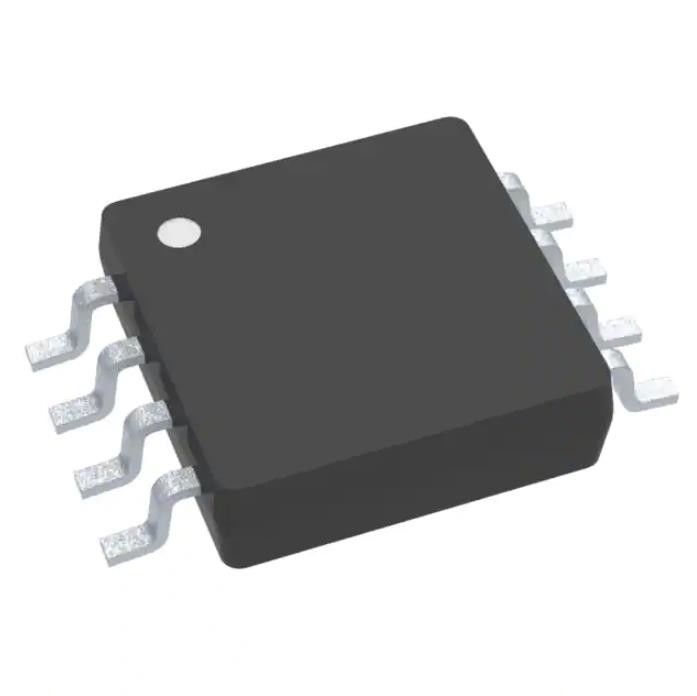

LMC6482IMM/NOPB Tvs Diode Smd Ic Cmos 2 Circuit 8vssop Lmc6482imm/Nopbct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMC6482IMM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | CMOS |
|---|---|---|---|
| Number Of Circuits: | 2 | Output Type: | Rail-to-Rail |
| Slew Rate: | 1.3V/µs | Gain Bandwidth Product: | 1.5 MHz |
| Current - Input Bias: | 0.02 PA | Voltage - Input Offset: | 110 µV |
Product Description
LMC6482IMM/NOPB Tvs Diode Smd Ic Cmos 2 Circuit 8vssop Lmc6482imm/Nopbct-Nd
CMOS Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
Specifications of LMC6482IMM/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.3V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 0.02 pA |
| Voltage - Input Offset | 110 µV |
| Current - Supply | 1.3mA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 15.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LMC6482 |
FEATURES of LMC6482IMM/NOPB
• Specifications are typical unless otherwise noted
• Rail-to-rail input common-mode voltage range (specified over temperature)
• Rail-to-rail output swing (within 20-mV of supply rail, 100-kΩ load)
• Specified 3-V, 5-V, and 15-V performance
• Excellent CMRR and PSRR: 82 dB
• Ultra-low input current: 20 fA
• High voltage gain (RL 500 kΩ): 130 dB
• Specified for 2-kΩ and 600-Ω loads
• Power-good output
• Packages: PDIP, SOIC, and VSSOP
Applications of LMC6482IMM/NOPB
• Data acquisition (DAQ)
• Currency counter
• Oscilloscope (DSO)
• Intra-DC interconnect (METRO)
• Macro remote radio unit (RRU)
• Multiparameter patient monitor
• Merchant telecom rectifiers
• Train control and management
• Process analytics (pH, gas, concentration, force, and humidity)
• Three phase UPS
• Improved replacement for TLC272, TLC277
Environmental & Export Classifications of LMC6482IMM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
