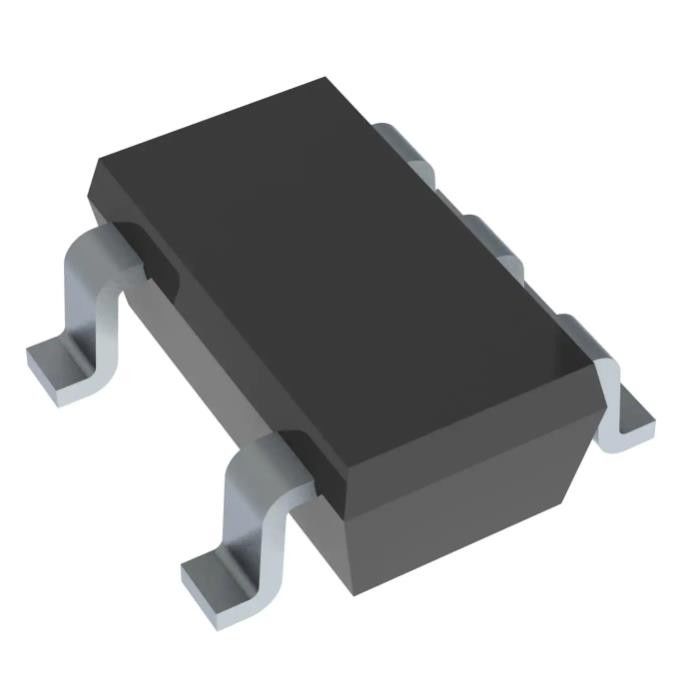

LM7301IM5/NOPB Tvs Diode Smd Ic Opamp Gp 1 Circuit Sot23-5 Lm7301im5/Nopbct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM7301IM5/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | General Purpose |
|---|---|---|---|
| Number Of Circuits: | 1 | Output Type: | Rail-to-Rail |
| Slew Rate: | 1.25V/µs | Gain Bandwidth Product: | 4 MHz |
| Current - Input Bias: | 103 NA | Voltage - Input Offset: | 40 µV |
Product Description
LM7301IM5/NOPB Tvs Diode Smd Ic Opamp Gp 1 Circuit Sot23-5 Lm7301im5/Nopbct-Nd
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Specifications of LM7301IM5/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.25V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 103 nA |
| Voltage - Input Offset | 40 µV |
| Current - Supply | 720µA |
| Current - Output / Channel | 11.7 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LM7301 |
FEATURES of LM7301IM5/NOPB
• At VS 5 V (Typical Unless Otherwise Noted)
• Tiny, Space-Saving, 5-Pin SOT-23 Package
• Greater than Rail-to-Rail Input CMVR: −0.25 V to 5.2 V
• Rail-to-Rail Output Swing: 007 V to 4.93 V
• Wide Gain-Bandwidth: 4 MHz
• Low Supply Current: 0.6 mA
• Wide Supply Range: 1.8 V to 32 V
• High PSRR: 104 dB
• High CMRR: 93 dB
• Excellent Gain: 97 dB
Applications of LM7301IM5/NOPB
• Portable Instrumentation
• Signal Conditioning Amplifiers/ADC Buffers
• Active Filters
• Modems
• PCMCIA Cards
Environmental & Export Classifications of LM7301IM5/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
