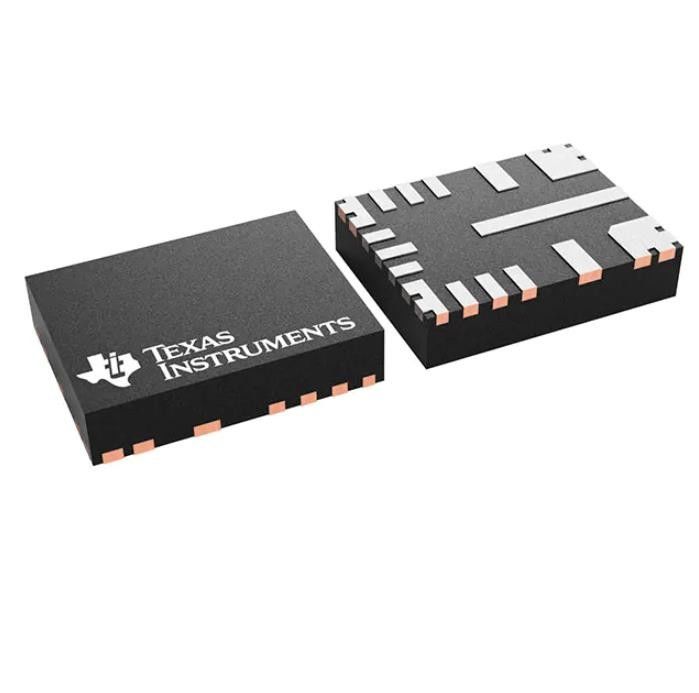

LM61480RPHR Tvs Diode Smd 296-LM61480RPHRTR-ND IC REG BUCK ADJ 8A 16VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM61480RPHR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 3V | Voltage - Input (Max): | 36V |
Product Description
LM61480RPHR Tvs Diode Smd 296-LM61480RPHRTR-ND IC REG BUCK ADJ 8A 16VQFN
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 8A 16-PowerVFQFN
Specifications of LM61480RPHR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 34.2V |
| Current - Output | 8A |
| Frequency - Switching | 400kHz, 2.2MHz, 200kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerVFQFN |
| Supplier Device Package | 16-VQFN-HR (4.5x3.5) |
FEATURES of LM61480RPHR
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Input voltage range from 3 V to 36 V
• RESET output with filter and delayed release
• Designed for low EMI:
– CISPR 11/32 class B compliant EVM
– Pin-configurable spread spectrum
– Adjustable SW node rise time
– Above and below AM band operation: pin configurable at fixed 400 kHz and 2.2 MHz or adjustable from 200 kHz –2.2 MHz
– Low EMI symmetrical pinout
– Light load mode is pin-configurable for constant frequency or pulse frequency modulation (PFM)
• High-efficiency solution
– 95% efficient for an 8-A load
– 5-µA input current while unloaded in auto mode
– <1-µA shutdown current (typical)
• High power density
– Built-in compensation, soft start, current limit, thermal shutdown, and UVLO
– 4.5-mm × 3.5-mm wettable flank QFN package
Applications of LM61480RPHR
• Industrial transport
• Avionics
• Industrial PC
• PLC, DCS, and PAC
• Semiconductor test equipment
Environmental & Export Classifications of LM61480RPHR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
