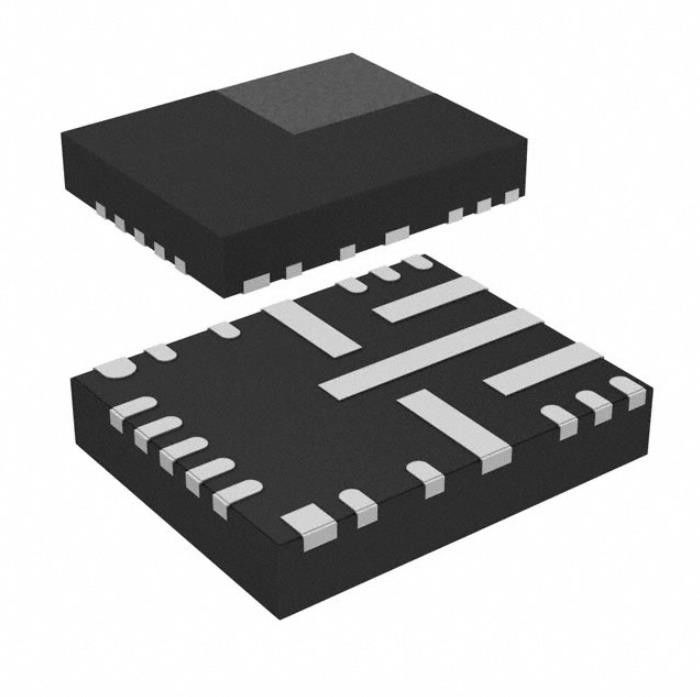

LM53625NQRNLRQ1 Tvs Diode Smd Ic Reg Buck 3.3v 2.5a 22vqfn Lm53625nqrnlrq1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM53625NQRNLRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Fixed | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 3.9V | Voltage - Input (Max): | 36V |
Product Description
LM53625NQRNLRQ1 Tvs Diode Smd Ic Reg Buck 3.3v 2.5a 22vqfn Lm53625nqrnlrq1-Nd
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 2.5A 22-VFQFN
Specifications of LM53625NQRNLRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 2.5A |
| Frequency - Switching | 2.1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 22-VFQFN |
| Supplier Device Package | 22-VQFN-HR (5x4) |
| Base Product Number | LM53625 |
FEATURES of LM53625NQRNLRQ1
• AEC-Q100 automotive qualified:
– Device temperature grade 1: –40°C to +125°C ambient operating temperature range
– Device HBM classification level 2
– Device CDM classification level C6
• –40°C to +150°C junction temperature range
• 15-µA quiescent urrent at no load (typical) with 3.3-V output
• 5.0-mm × 4.0-mm VQFN package with or without wettable flanks and 0.6-mm VIN spacing
• Low EMI and switch noise
• Spread spectrum option
• External frequency synchronization
• RESET output with internal filter and 3-ms release timer
• Pin-selectable forced PWM mode
• Built-in compensation, soft start, current limit, thermal shutdown, and UVLO
• 0.6-V dropout at 3.5 A at 105°C TA
• ±1% output voltage tolerance (–40°C to 125°C TJ)
• Available with fixed 5-V, 3.3-V or adjustable output
Applications of LM53625NQRNLRQ1
• Telematics
• Head unit
• Instrumentation cluster
• Battery-powered applications
Environmental & Export Classifications of LM53625NQRNLRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
