LM5141QRGERQ1 Tvs Diode Smd Ic Reg Ctrlr Buck 24vgfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5141QRGERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | Automotive, AEC-Q100 |
|---|---|---|---|
| Package: | Tape & Reel (TR) | Product Status: | Active |
| Output Type: | Transistor Driver | Function: | Step-Down |
| Output Configuration: | Positive | Topology: | Buck |
Product Description

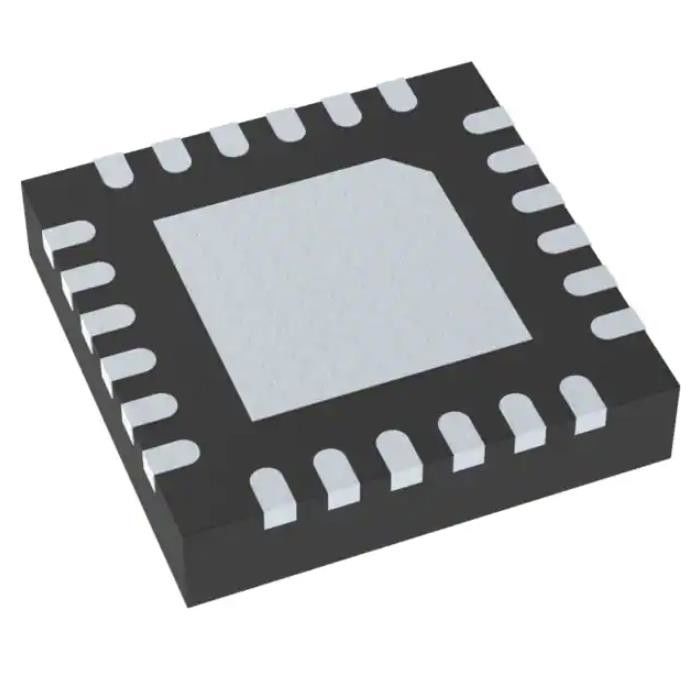

LM5141QRGERQ1 Tvs Diode Smd Ic Reg Ctrlr Buck 24vgfn
Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-VQFN (4x4)
Specifications of LM5141QRGERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 65V |
| Frequency - Switching | 440kHz, 2.2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | LM5141 |
FEATURES of LM5141QRGERQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• VIN: 3.8 V to 65 V (70 V Absolute Maximum)
• Output: Fixed 3.3 V, 5 V, or Adjustable From 1.5 V to 15 V with 0.8% Accuracy
• Fixed 2.2-MHz or 440-kHz Switching Frequency with 5% Accuracy
• High-Side and Low-Side Gate Drive With SlewRateControl
• Optional Frequency Shift by Varying an Analog Voltage or RT Resistor
• Optional Synchronization to an External Clock
• Optional Spread Spectrum
• Shutdown Mode IQ: 10 µA Typical
• Low Standby Mode IQ: 35 µA Typical
• 75-mV Current Limit Threshold with 0.9% Accuracy
• External Resistor or DCR Current Sensing
• Output Enable Logic Input
• Hiccup Mode for Sustained Overload
• Power-Good Indication Output
• Selectable Diode Emulation or Forced PulseWidthModulation
• 24-pin VQFN Package With Wettable Flanks
• Create a Custom Design Using the LM5141-Q1 With the WEBENCH® Power Designer
Applications of LM5141QRGERQ1
• Automotive Applications Including:
– Infotainment Systems
– Instrumentation Clusters
– Advanced Driver Assistance Systems (ADAS)
Environmental & Export Classifications of LM5141QRGERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
