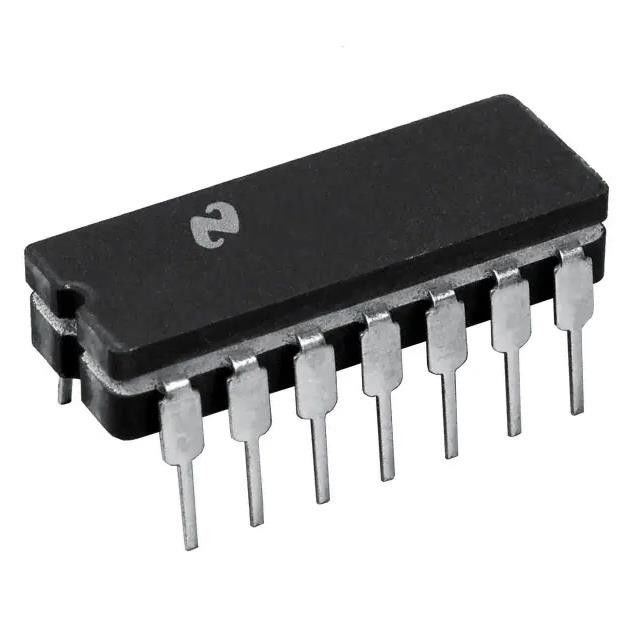

LM148J Integrated Circuit IC OPAMP GP 4 CIRCUIT 14CDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM148J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 4 | Slew Rate: | 0.5V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 30 NA |
| Voltage - Input Offset: | 1 MV | Current - Supply: | 2.4mA (x4 Channels) |
| Current - Output / Channel: | 25 MA | Voltage - Supply Span (Min): | 10 V |
| Voltage - Supply Span (Max): | 44 V | ||
| Highlight: | LM148J Integrated Circuit IC,IC OPAMP GP 4 CIRCUIT,OPAMP GP 4 CIRCUIT 14CDIP |
||
Product Description
LM148J Integrated Circuit IC Chip General Purpose Amplifier 4 Circuit 14-CDIP
IC OPAMP GP 4 CIRCUIT 14CDIP
Specifications of LM148J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | National Semiconductor |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 30 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 2.4mA (x4 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 44 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP |
Features of LM148J
* 741 op amp operating characteristics
* Class AB output stage — no crossover distortion
* Pin compatible with the LM124
* Overload protection for inputs and outputs
* Low supply current drain: 0.6 mA/Amplifier
* Low input offset voltage: 1 mV
* Low input offset current: 4 nA
* Low input bias current 30 nA
* High degree of isolation between amplifiers: 120 dB
* Gain bandwidth product
* LM148 (unity gain): 1.0 MHz
Description of LM148J
The LM148 can be used anywhere multiple 741 or 1558 type amplifiers are being used and in applications where amplifier
matching or high packing density is required. For lower power refer to LF444.
Environmental & Export Classifications of LM148J
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
