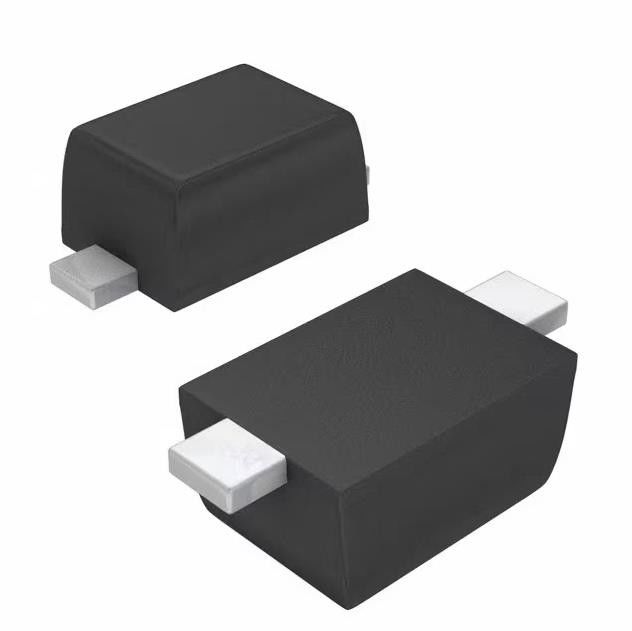

SDM20U40-7 Diode 40 V 250mA Surface Mount SOD-523 Fast Recovery
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SDM20U40-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 40 V | Current - Average Rectified (Io): | 250mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 600 MV @ 200 MA | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 10 Ns | Current - Reverse Leakage @ Vr: | 5 µA @ 30 V |
| Capacitance @ Vr, F: | 50pF @ 0V, 1MHz | Operating Temperature - Junction: | -65°C ~ 125°C |
Product Description
SDM20U40-7 Diode 40 V 250mA Surface Mount SOD-523 Fast Recovery
Diode 40 V 250mA Surface Mount SOD-523
Specifications of SDM20U40-7
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 250mA |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
| Capacitance @ Vr, F | 50pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Base Product Number | SDM20 |
Features of SDM20U40-7
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Low Reverse Capacitance
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
This part is qualified to JEDEC standards (as references inAEC-Q) for High Reliability.
An Automotive-Compliant Part is Available Under Separate Datasheet (SDM20U40Q)
Mechanical Data of SDM20U40-7
Package: SOD523
Package Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.002 grams (Approximate)
Environmental & Export Classifications of SDM20U40-7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
