MBRB2035CTHE3/81 Diode Array 1 Pair 35 V 10A TO-263-3 D²Pak TO-263AB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MBRB2035CTHE3/81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 35 V | Current - Average Rectified (Io) (per Diode): | 10A |
| Voltage - Forward (Vf) (Max) @ If: | 650 MV @ 10 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 100 µA @ 35 V | Operating Temperature - Junction: | -65°C ~ 150°C |
Product Description

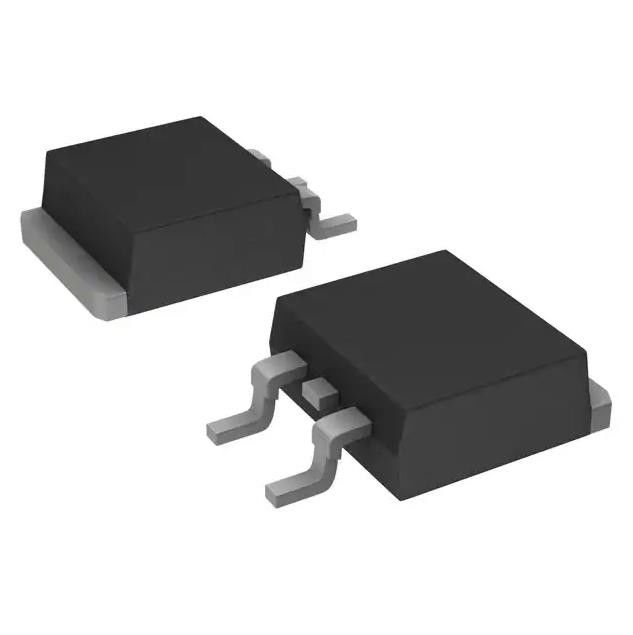

MBRB2035CTHE3/81 Diode Array 1 Pair 35 V 10A TO-263-3 D²Pak TO-263AB
Diode Array 1 Pair Common Cathode 35 V 10A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Specifications of MBRB2035CTHE3/81
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 35 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Base Product Number | MBRB20 |
Features of MBRB2035CTHE3/81
• Power pack
• Guardring for overvoltage protection
• Low power loss, high efficiency
• Low forward voltage drop
• High forward surge capability
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for D2PAK (TO-263AB) package)
• Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for ITO-220AB package)
• AEC-Q101 qualified
Applications of MBRB2035CTHE3/81
For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC
converters, and polarity protection application.
MECHANICAL DATA of MBRB2035CTHE3/81
Case: ITO-220AB, D2PAK (TO-263AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant, AEC-Q101 qualified
(“_X” denotes revision code, e.g. A, B, ...)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity: as marked
Mounting Torque: 10 in-lbs maximum
Environmental & Export Classifications of MBRB2035CTHE3/81
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
