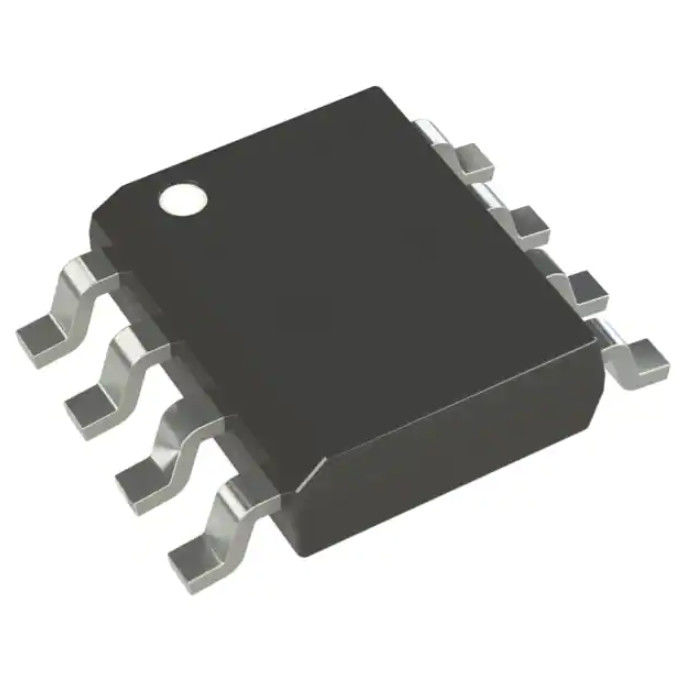

24AA256UID-I/SN Integrated Circuits IC Eeprom 256kbit I2c 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 24AA256UID-I/SN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
| Technology: | EEPROM | Memory Size: | 256Kbit |
| Memory Organization: | 32K X 8 | Memory Interface: | I²C |
Product Description
24AA256UID-I/SN Integrated Circuits IC Eeprom 256kbit I2c 8soic
EEPROM Memory IC 256Kbit I²C 400 kHz 900 ns 8-SOIC
Specifications of 24AA256UID-I/SN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 256Kbit |
| Memory Organization | 32K x 8 |
| Memory Interface | I²C |
| Clock Frequency | 400 kHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 ns |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 24AA256 |
Features of 24AA256UID-I/SN
• Preprogrammed 32-Bit Serial Number:
- Unique across all UID-family EEPROMs
- Scalable to 48-bit, 64-bit, 128-bit, 256-bit,
and other lengths
• Preprogrammed Globally Unique, 48-bit or 64-bit
Node Address:
- Compatible with EUI-48™ and EUI-64™
• Codes Stored in Permanently Write-Protected
Upper 1/8th of EEPROM Array
• Single Supply with Operation Down to 1.7V
• Low-Power CMOS Technology:
- Active current 400 µA, typical
- Standby current 100 nA, typical
• 2-Wire Serial Interface, I2C Compatible
• Cascadable up to Eight Devices
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kHz and 400 kHz Clock Compatibility
• Page Write Time 5 ms Maximum
• Self-Timed Erase/Write Cycle
• 64-Byte Page Write Buffer
• ESD Protection >4000V
• More than One Million Erase/Write Cycles
• Data Retention >200 years
• Packages Include 8-lead PDIP, SOIC and TSSOP
• RoHS Compliant
• Temperature Ranges:
- Industrial (I): -40°C to +85°C
APPLICATIONS of 24AA256UID-I/SN
The Microchip Technology Inc. 24AA256UID is a 32K x 8 (256 Kbit) Serial Electrically Erasable PROM with preprogrammed EUI-48 and EUI-64 node addresses and a 32-bit Unique ID, capable of operation across a broad voltage range (1.7V to 5.5V). This device also has a page write capability of up to 64 bytes of data. This device is available in the standard 8-pin plastic DIP, SOIC and TSSOP packages.
Environmental & Export Classifications of 24AA256UID-I/SN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
