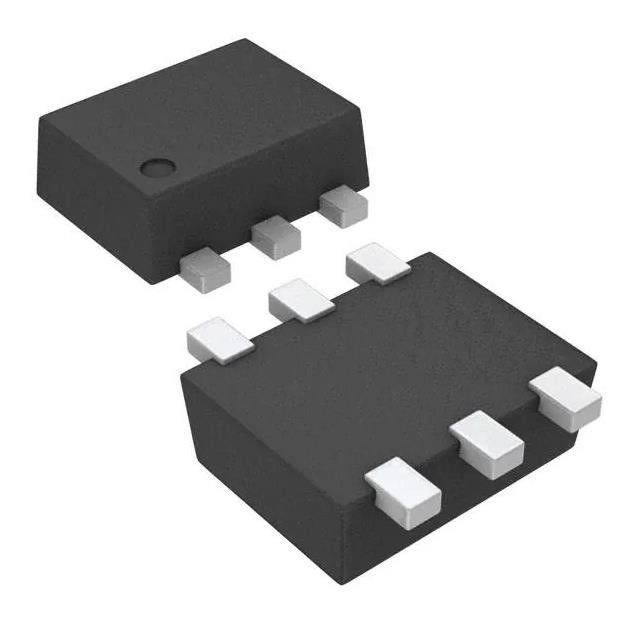

TPD4E001DRLR Integrated Circuit IC Chip Tvs Diode 5.5vwm 6sot
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPD4E001DRLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Steering (Rail To Rail) |
|---|---|---|---|
| Unidirectional Channels: | 4 | Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
| Voltage - Breakdown (Min): | 11V | Power - Peak Pulse: | 100W |
| Power Line Protection: | Yes | Applications: | Ethernet |
Product Description
TPD4E001DRLR Integrated Circuit IC Chip Tvs Diode 5.5vwm 6sot
Clamp Ipp Tvs Diode Surface Mount SOT-5X3
Specifications of TPD4E001DRLR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 11V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 100W |
| Power Line Protection | Yes |
| Applications | Ethernet |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-5X3 |
| Base Product Number | TPD4E001 |
Features of TPD4E001DRLR
• IEC 61000-4-2 ESD Protection (Level 4)
– 8-kV Contact Discharge
– 15-kV Air-Gap Discharge
• 5.5-A Peak Pulse Current (8/20-µs Pulse)
• IO Capacitance: 1.5 pF (Typical)
• Low Leakage Current: 1 nA (Maximum)
• Low Supply Current: 1 nA
• 0.9-V to 5.5-V Supply-Voltage Range
• Space-Saving DRL, DBV, DCK, DPK, and DRS Package Options
• Alternate 2, 3, 6-Channel options Available: TPD2E001, TPD3E001, TPD6E001
Applications of TPD4E001DRLR
• USB 2.0
• Ethernet
• FireWire™ Serial Bus
• LVDS
• SVGA Video Connections
• Glucose Meters
Environmental & Export Classifications of TPD4E001DRLR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
