TPS78230DRVR Integrated Circuit Chip Reg Linear 3v 150ma 6wson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS78230DRVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Current - Output: | 150mA |
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 3V |
| Current - Quiescent (Iq): | 1.3 µA | Voltage Dropout (Max): | 0.25V @ 150mA |
Product Description

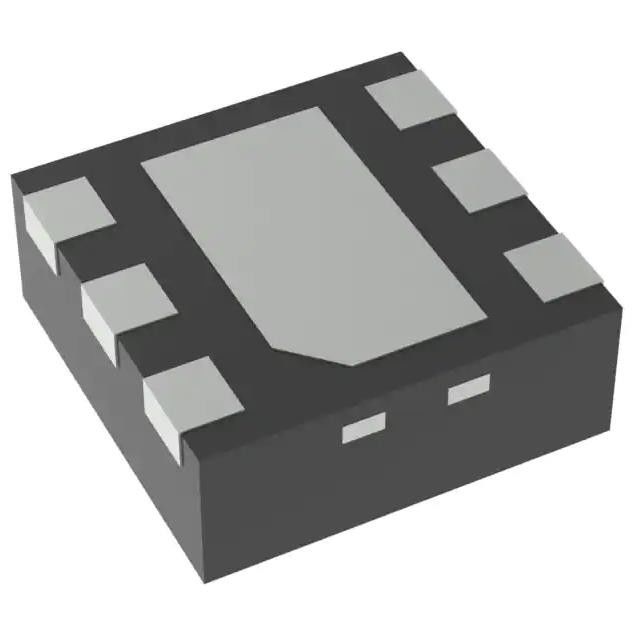

TPS78230DRVR Integrated Circuit Chip Reg Linear 3v 150ma 6wson
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-WSON (2x2)
Specifications of TPS78230DRVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 1.3 µA |
| Current - Supply (Max) | 8 µA |
| PSRR | 40dB ~ 15dB (10Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | TPS78230 |
Features of TPS78230DRVR
• Low IQ: 500 nA
• 150-mA, Low-Dropout Regulator
• Input Voltage Range: 2.2 V to 5.5 V
• Low-Dropout at 25°C, 130 mV at 150 mA
• Low-Dropout at 85°C, 175 mV at 150 mA
• 3% Accuracy Over Load, Line, and Temperature
• Stable with a 1.0-μF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin
• Available in DDC (TSOT23-5) or DRV (2-mm x 2- mm SON-6) Packages
Applications of TPS78230DRVR
• TI MSP430 Attach Applications
• Wireless Handsets and Smart Phones
• MP3 Players
• Battery-Operated Handheld Products
Environmental & Export Classifications of TPS78230DRVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
