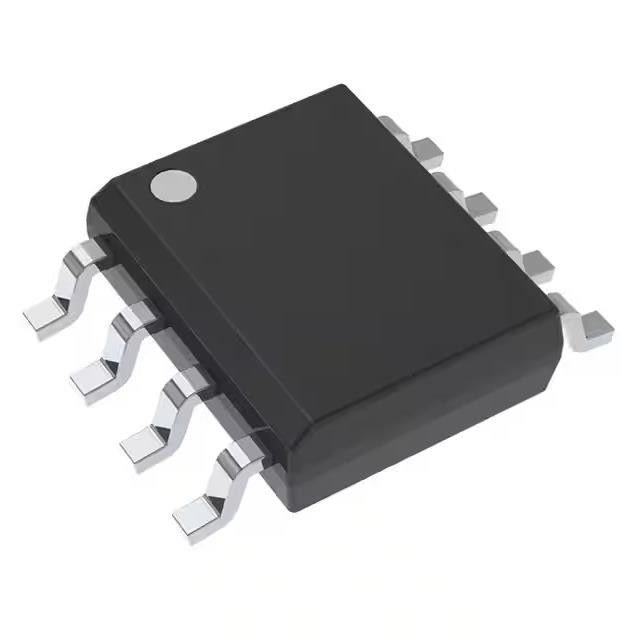

LM2936HVMAX-5.0 / NOPB 8 Pin Ic Chip Reg Linear 5v 50ma 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2936HVMAX-5.0/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | Fixed |
| Voltage - Input (Max): | 60V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.4V @ 50mA | Current - Output: | 50mA |
Product Description
LM2936HVMAX-5.0/NOPB Transistor Ic Chip Ic Reg Linear 5v 50ma 8soic
Linear Voltage Regulator IC Positive Fixed 1 Output 50mA 8-SOIC
Specifications of LM2936HVMAX-5.0/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 9 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2936 |
Features of LM2936HVMAX-5.0/NOPB
• LM2936 Operating VIN range of 5.5 V to 40 V
• LM2936HV Operating VIN range of 5.5 V to 60 V
• Ultra Low Quiescent Current (IQ ≤15 μA for IOUT = 100 μA)
• Fixed 3-V, 3.3-V or 5-V with 50-mAOutput
• ±2% Initial Output Tolerance
• ±3% Output Tolerance Over Line, Load, and Temperature
• Dropout Voltage Typically 200 mV
at IOUT = 50 mA
• –24-V Input Voltage Protection
• –50-V Input Transient Protection
• Internal Short Circuit Current Limit
• Internal Thermal Shutdown Protection
• Shutdown Pin Available with LM2936BM Package
Applications of LM2936HVMAX-5.0/NOPB
• Automotive
• Industrial Controls
• Point of Load
Environmental & Export Classifications of LM2936HVMAX-5.0/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
